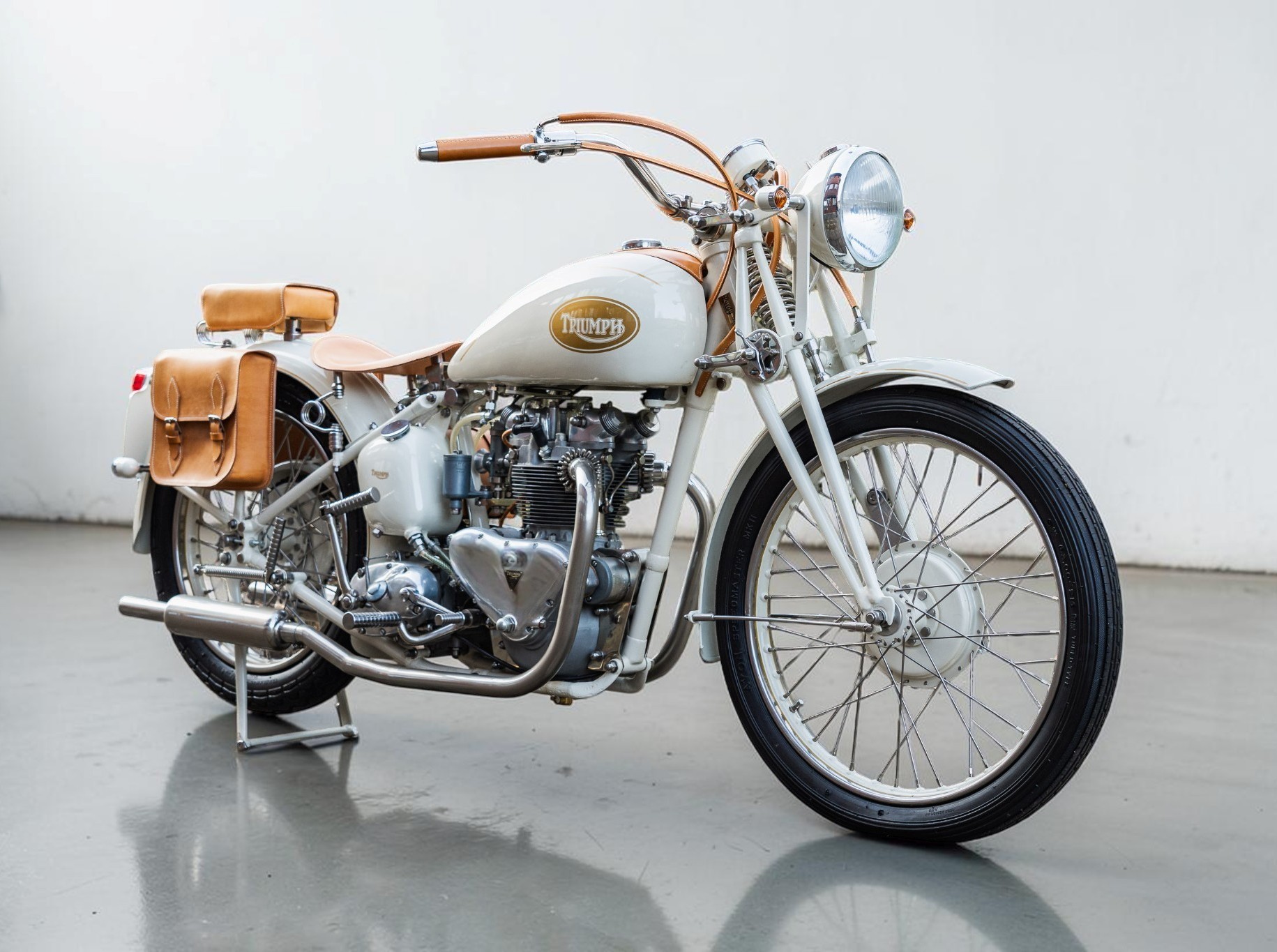

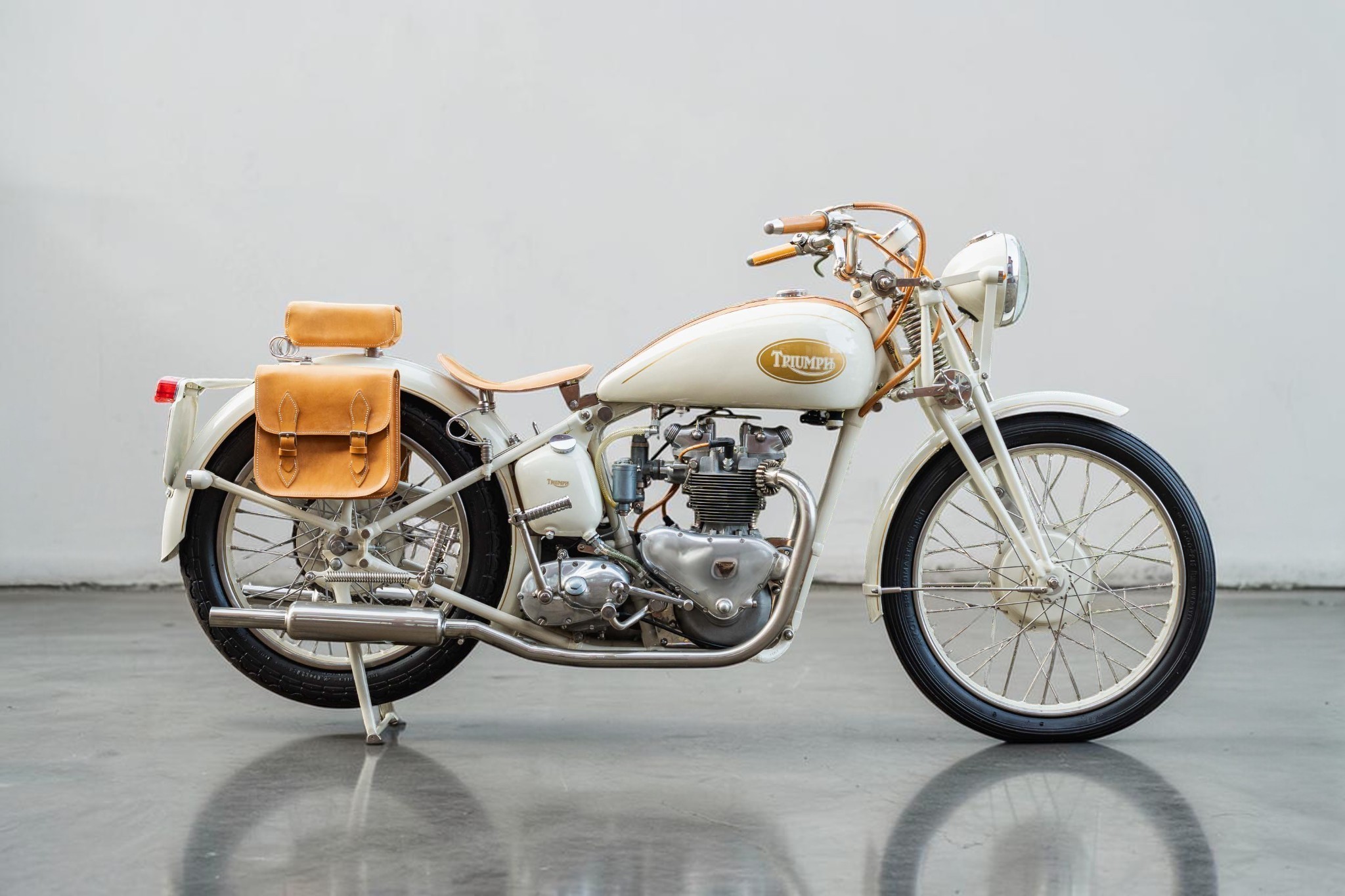

The 1946 Triumph Tiger 100, commonly identified by its T100 model designation, represents one of the most important post-war British sporting motorcycles. Returning to civilian production after the Second World War, the Tiger 100 combined Edward Turner's influential 500cc parallel-twin architecture with a newly introduced telescopic front fork, creating a faster and more modern interpretation of Triumph's pre-war sporting formula.

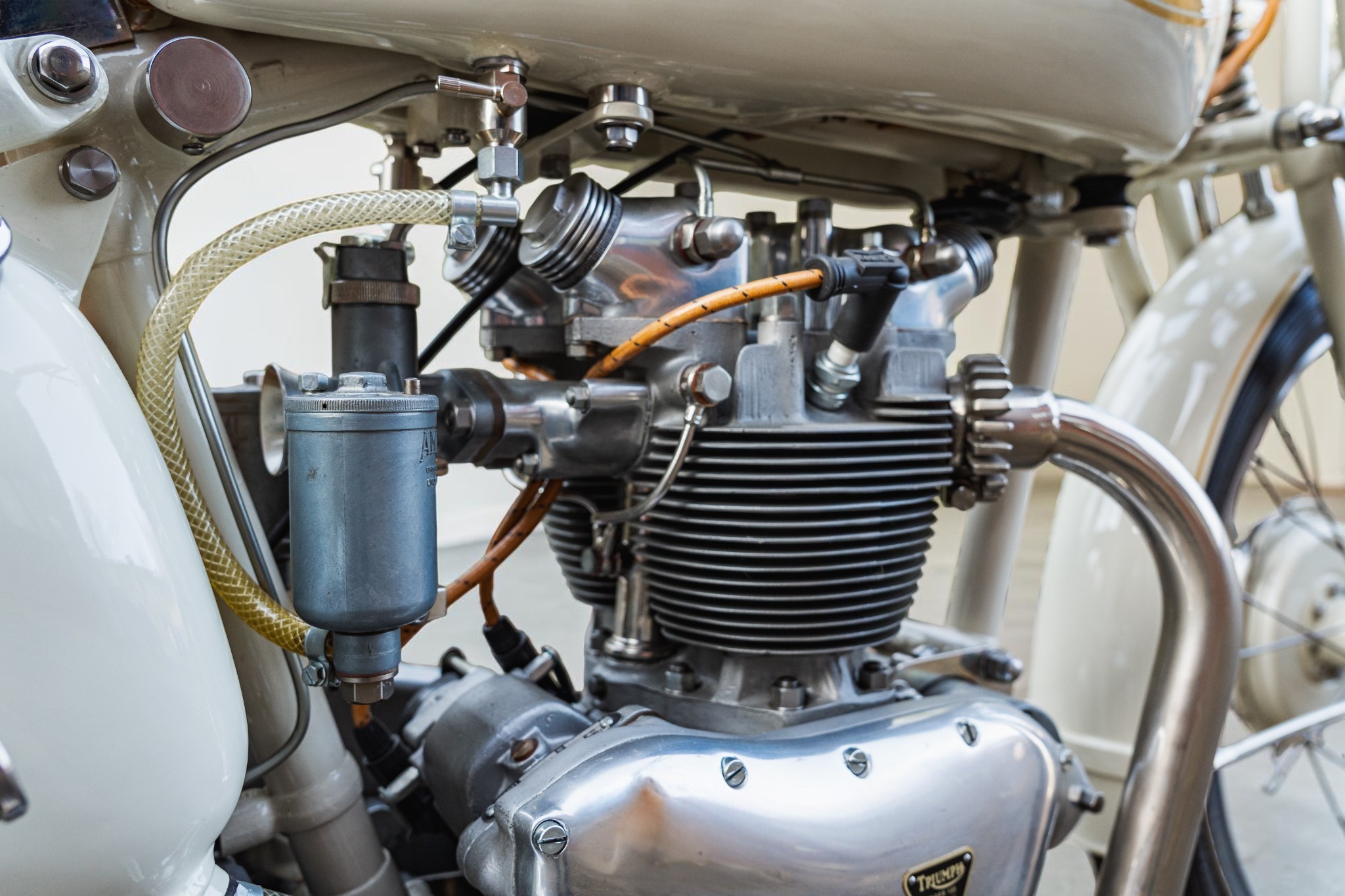

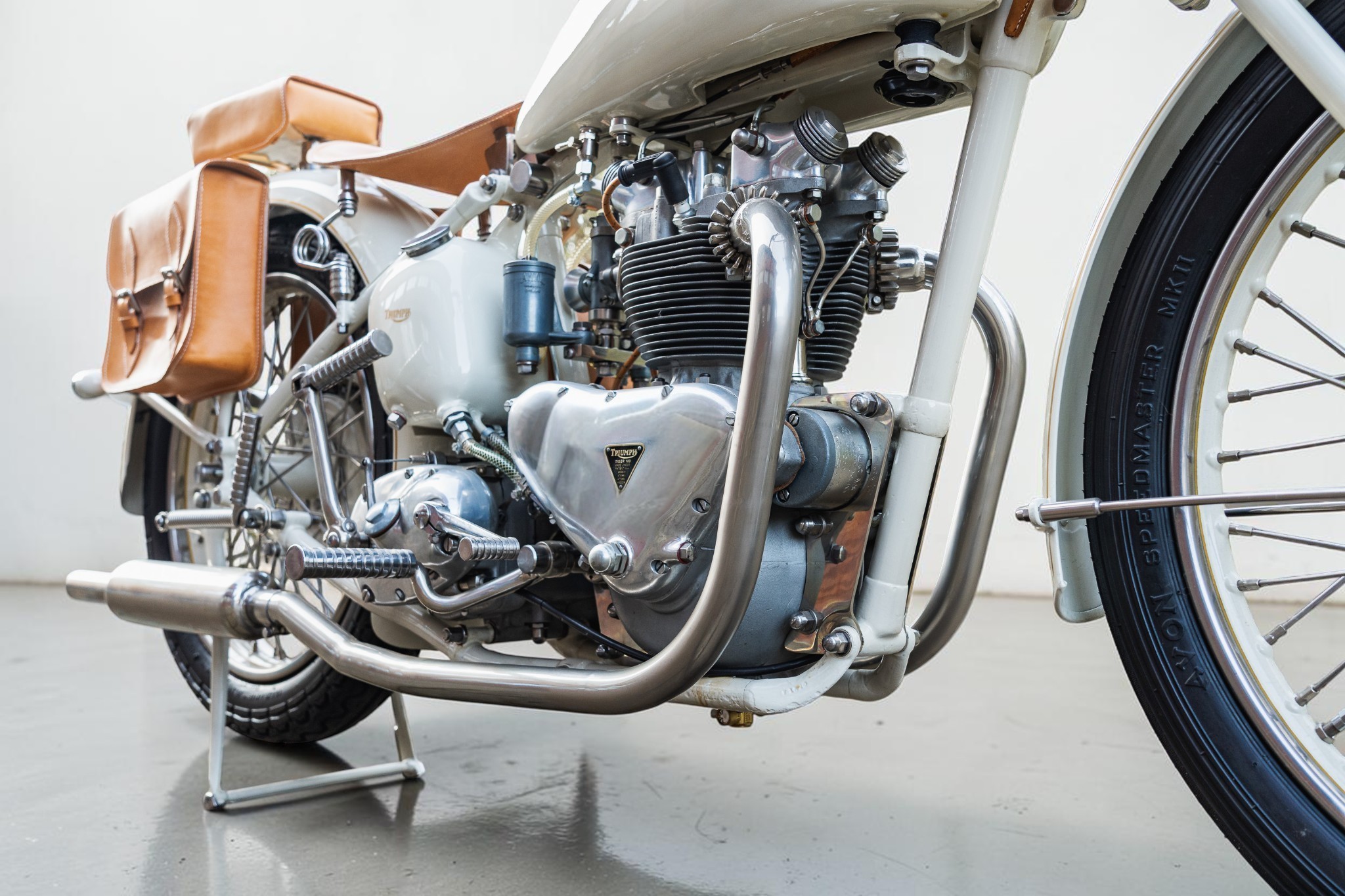

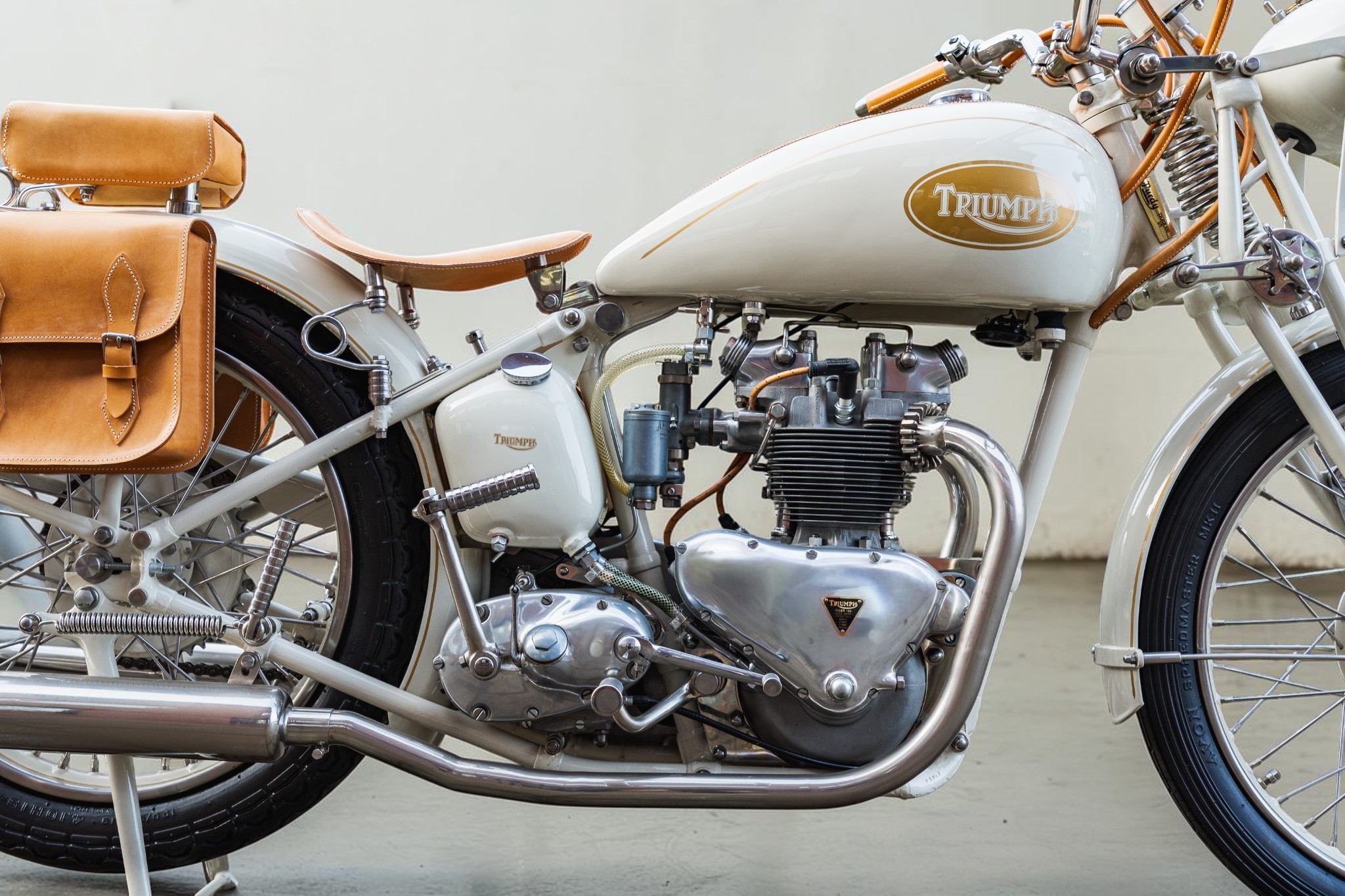

At the center of the 1946 Tiger 100 is a 498cc air-cooled overhead-valve parallel-twin engine with a 63 x 80 mm bore and stroke. The 360-degree crankshaft configuration provides the characteristic power delivery and mechanical rhythm of Triumph's early twin-cylinder motorcycles, while the sporting T100 specification was developed to provide stronger performance than the standard touring-oriented machines in the Triumph range.
The engine uses a single Amal carburetor and separate magneto and dynamo electrical equipment, reflecting the post-war redesign of Triumph's electrical system. A four-speed gearbox transfers power through a conventional chain final drive, giving the Tiger 100 the gearing and mechanical simplicity expected of a high-performance British road motorcycle of the period.
One of the most significant changes for 1946 was the adoption of a telescopic front fork in place of the traditional girder fork used on earlier Tiger 100 models. The new fork represented a major step in Triumph's post-war chassis development and gave the motorcycle a cleaner appearance while providing hydraulic damping and substantially increased suspension travel compared with the previous arrangement.

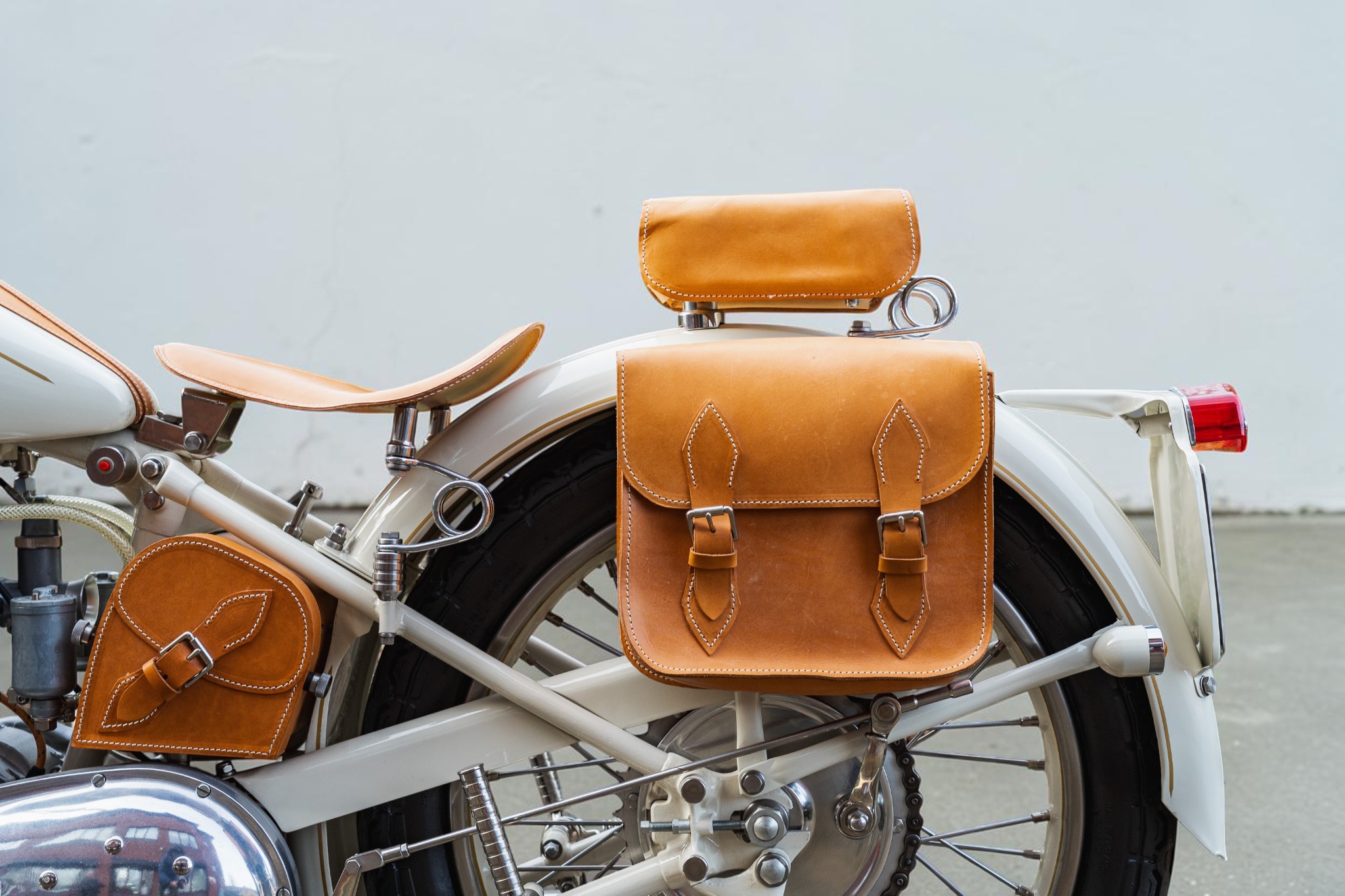

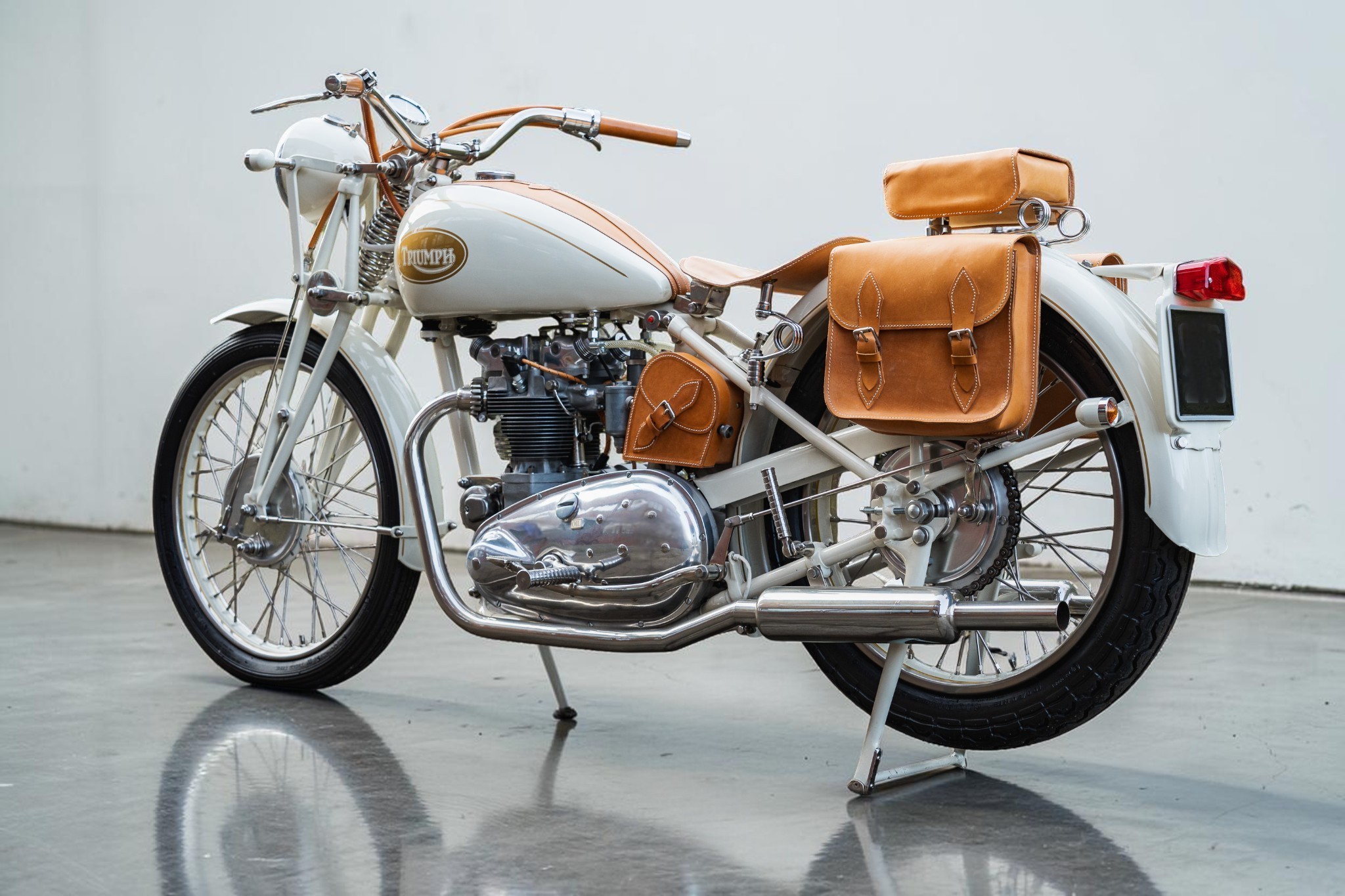

The rear of the 1946 Tiger 100 retained the proven rigid-frame architecture, although Triumph was already experimenting with alternative rear suspension solutions during this period. This combination of a rigid rear chassis and new telescopic front suspension makes the 1946 model particularly interesting as a transitional machine between Triumph's pre-war sporting motorcycles and the more advanced post-war chassis designs that followed.

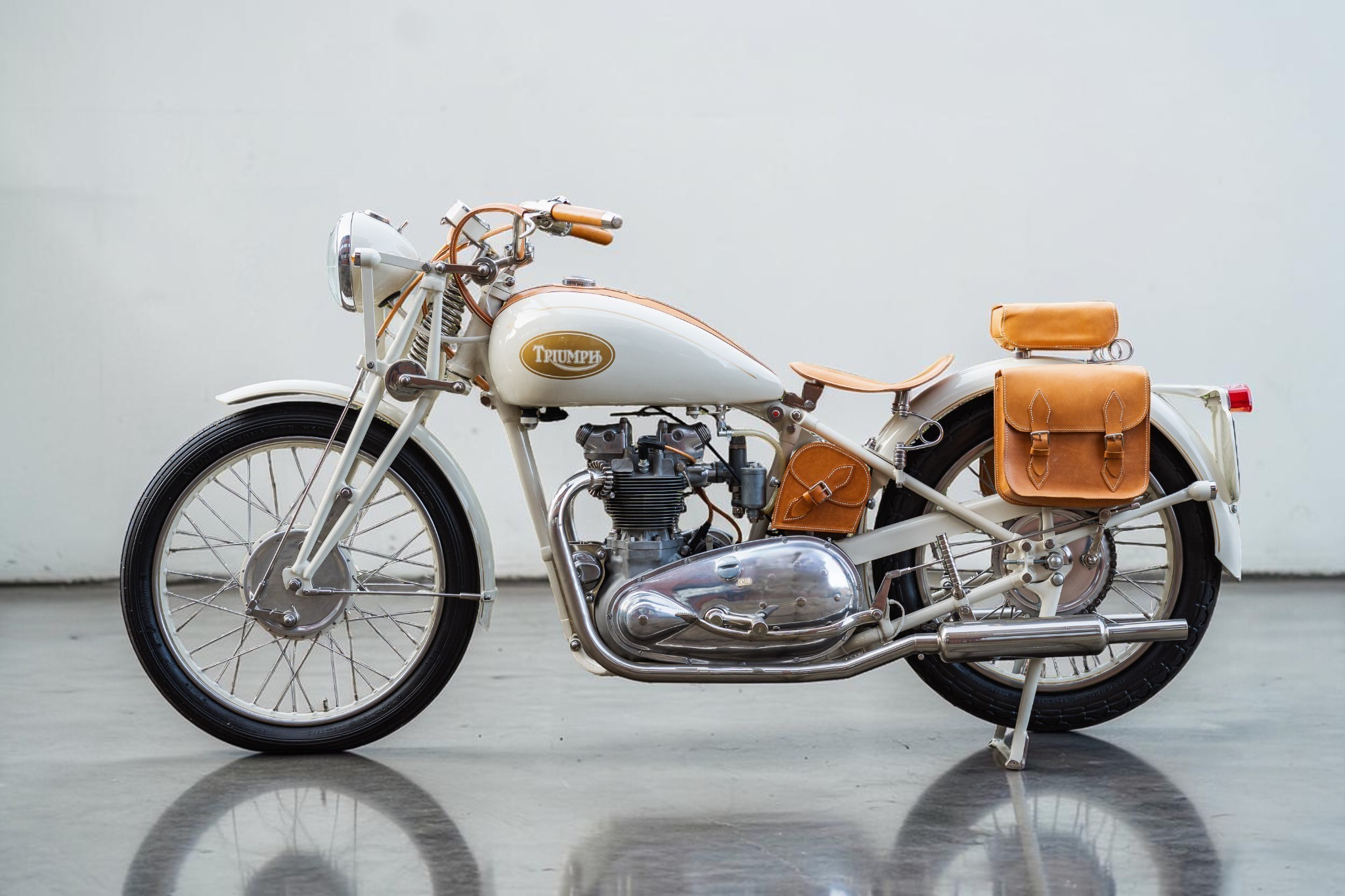

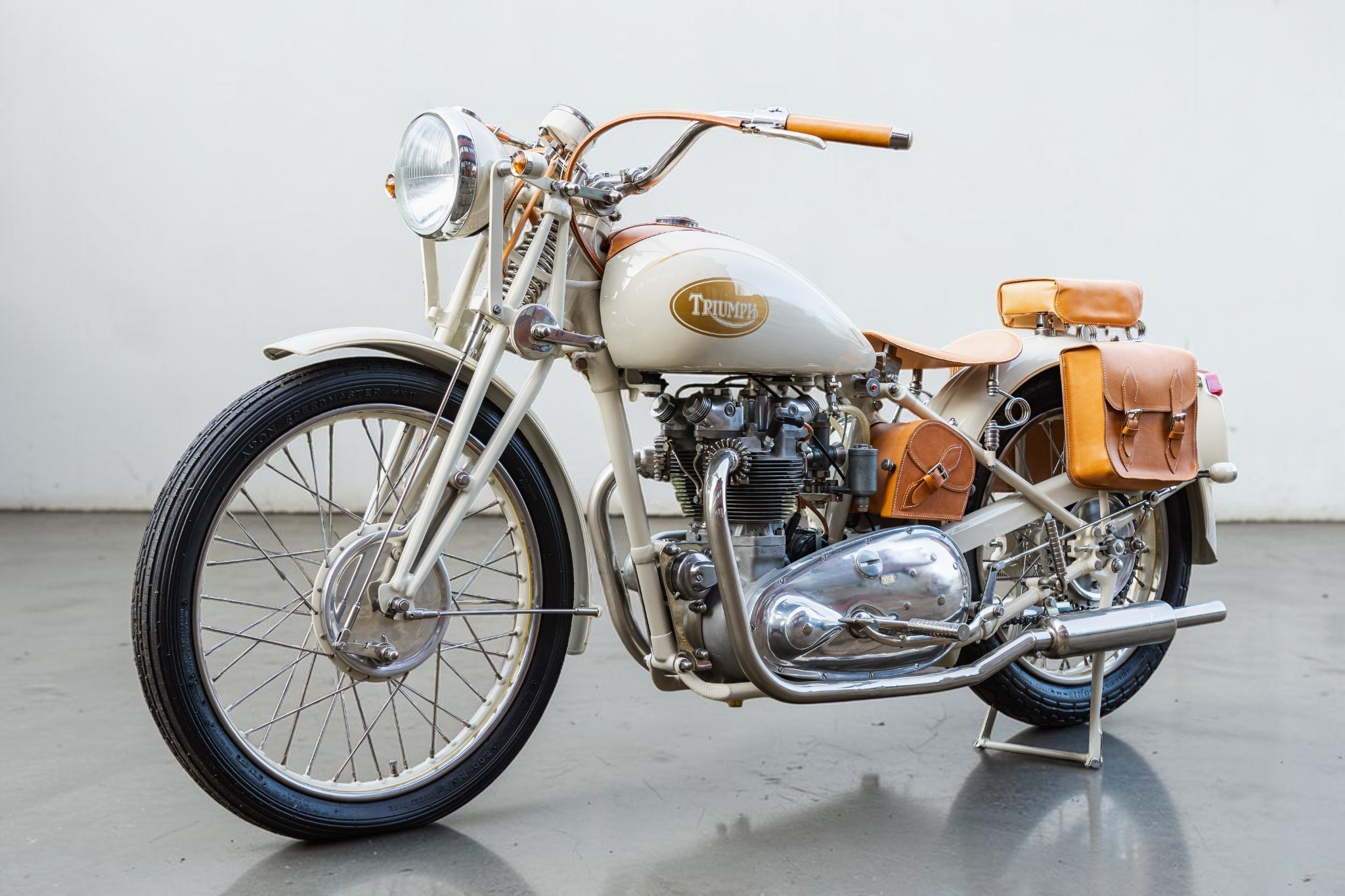

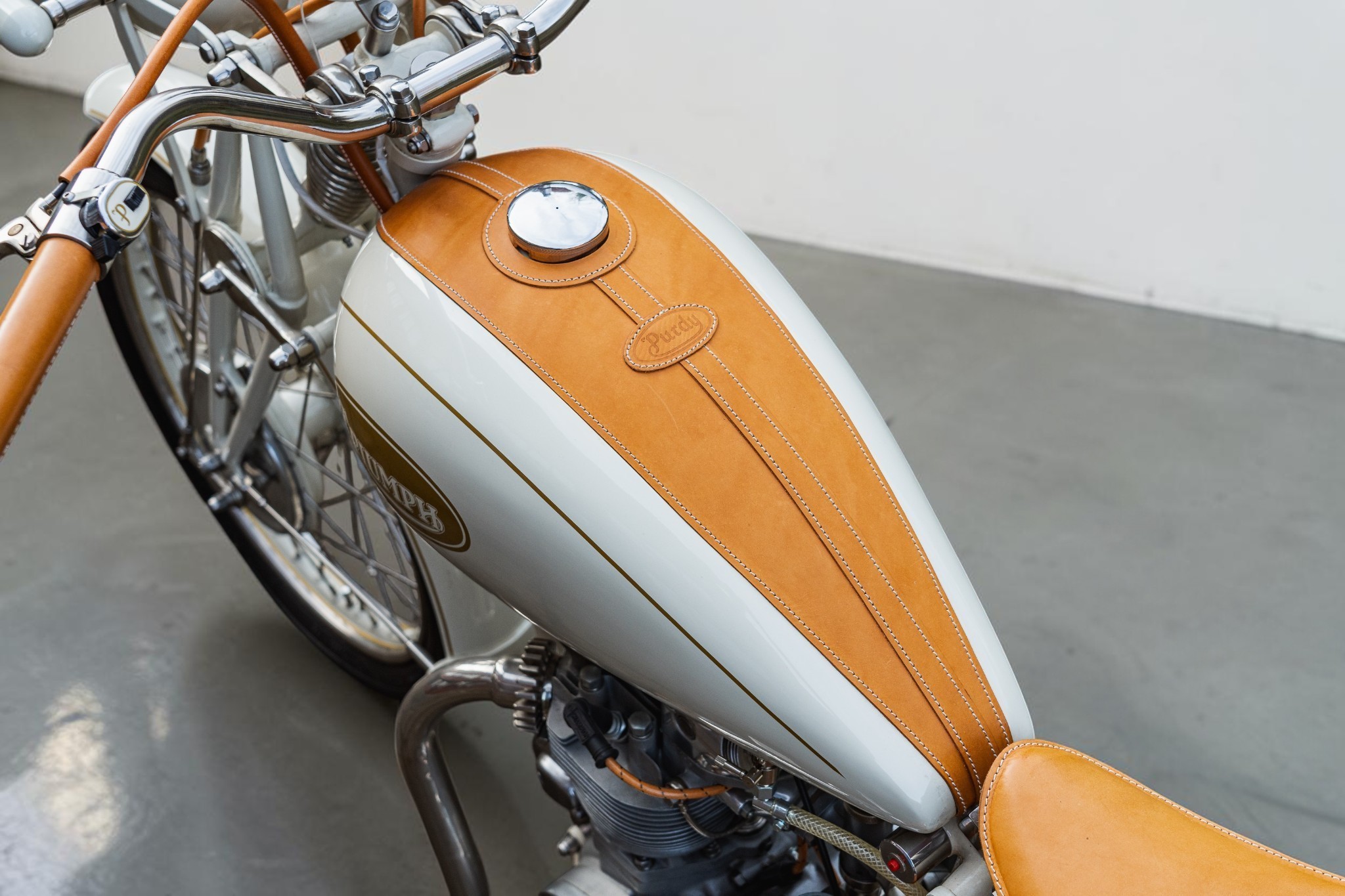

Visually, the 1946 Tiger 100 has the unmistakable character of a late-Vintage and early post-war Triumph. The exposed parallel-twin engine, slim steel frame, 19-inch wheels, traditional fuel tank, and new telescopic fork create a purposeful sporting profile. The restrained silver-and-chrome finish further distinguishes the T100 from the darker touring machines that preceded it.
The significance of the 1946 Tiger 100 extends beyond its specification. It was introduced at a critical moment when Triumph was rebuilding its civilian motorcycle business after wartime production. The company concentrated its post-war range around twin-cylinder machines, with the Tiger 100 occupying the sporting position alongside the Speed Twin and the smaller 3T.
For collectors, the 1946 Triumph T100 is therefore much more than an early post-war 500cc motorcycle. It is a transitional Triumph that connects the pre-war Tiger 100 lineage with the company's rapidly developing post-war performance motorcycles. Its combination of Edward Turner engineering, the new telescopic fork, and direct competition heritage makes it one of the most historically significant early post-war Triumph twins.
The story of the 1946 Triumph Tiger 100 begins with the extraordinary success of Edward Turner's 498cc Speed Twin, introduced in 1937. The compact parallel-twin engine transformed Triumph's position in the motorcycle market and established an engineering platform that would influence the company for decades. The sporting Tiger 100 developed from this architecture with a stronger emphasis on performance and competition-oriented riding.
Before the Second World War, the Tiger 100 had already established a reputation as one of Triumph's fastest road motorcycles. Its sporting specification, high-performance engine development, and distinctive silver finish positioned it above the conventional touring models in the Triumph range.
Civilian motorcycle production was interrupted by the war, and Triumph's Coventry works were destroyed by bombing in November 1940. Production subsequently continued at the company's new Meriden factory, which had been established during the war. When civilian motorcycle production resumed, Triumph focused its range around three key models: the 500cc Tiger 100, the 500cc Speed Twin, and the 349cc 3T.
The 1946 Tiger 100 was therefore part of a major recovery period for Triumph. Rather than simply reintroducing the pre-war motorcycle unchanged, the company incorporated important chassis and electrical developments. The most visible change was the replacement of the earlier girder fork with a telescopic fork, while the electrical system used separate magneto and dynamo components rather than the earlier Magdyno arrangement.
The introduction of the telescopic fork was particularly important because it represented Triumph's move toward the suspension architecture that would define its post-war motorcycles. The 1946 design used one-way hydraulic damping and approximately 6.5 inches of travel, although the early telescopic fork was still a relatively simple design compared with later Triumph suspension systems.
The sporting identity of the T100 was reinforced almost immediately through competition. In 1946, rider Ernie Lyons won the Manx Grand Prix on a specially developed Triumph based around the Tiger 100 concept. Triumph itself records the victory as the Tiger 100's maiden Manx Grand Prix win, making 1946 a landmark year in the model's history.
The racing machine ridden by Lyons was not simply an untouched showroom motorcycle. It was a highly developed competition machine prepared by Triumph engineers and Freddie Clarke, using a special wartime-derived generator engine and experimental rear suspension. Nevertheless, the connection was historically important because it demonstrated the performance potential of the same fundamental 500cc Triumph twin-cylinder engineering used in the production T100.
The 1946 Manx Grand Prix victory also became part of a broader post-war Triumph racing revival. The 493cc Triumph twin ridden by Lyons averaged 76.74 mph in difficult conditions, and the machine would later serve as a prototype for Triumph's Grand Prix factory racers introduced in 1948.
Production Tiger 100 motorcycles remained relatively close to the established pre-war mechanical formula while receiving important post-war updates. The 1946-1947 T100 retained the 498cc OHV parallel-twin engine and four-speed transmission, while the telescopic fork became one of the model's most recognizable distinguishing features.
The 1946 model is especially valuable historically because it captures Triumph at the beginning of its post-war expansion. The company was transitioning from wartime manufacturing back into civilian production while simultaneously developing the engineering concepts that would make its motorcycles internationally successful during the 1950s and 1960s.

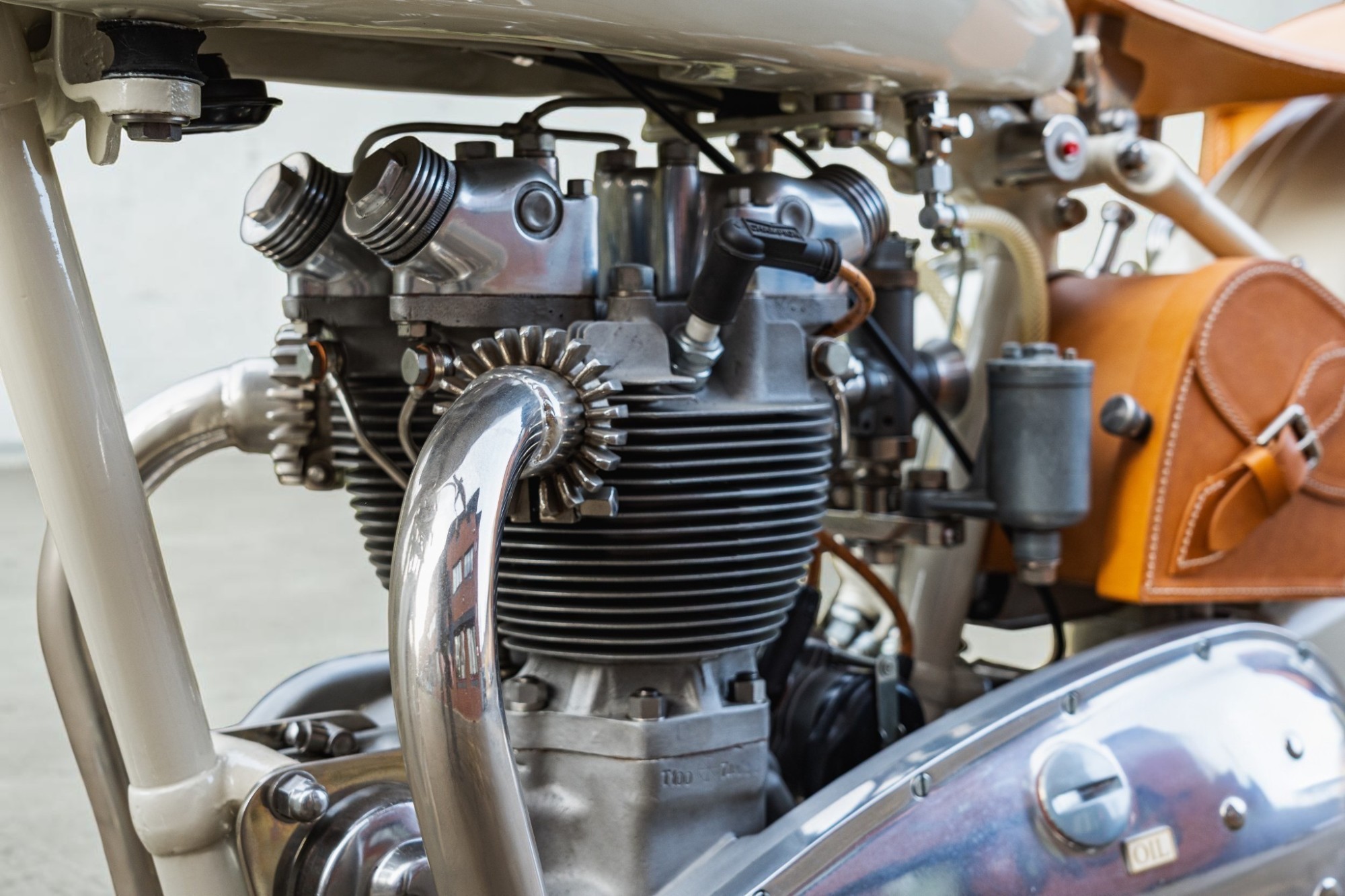

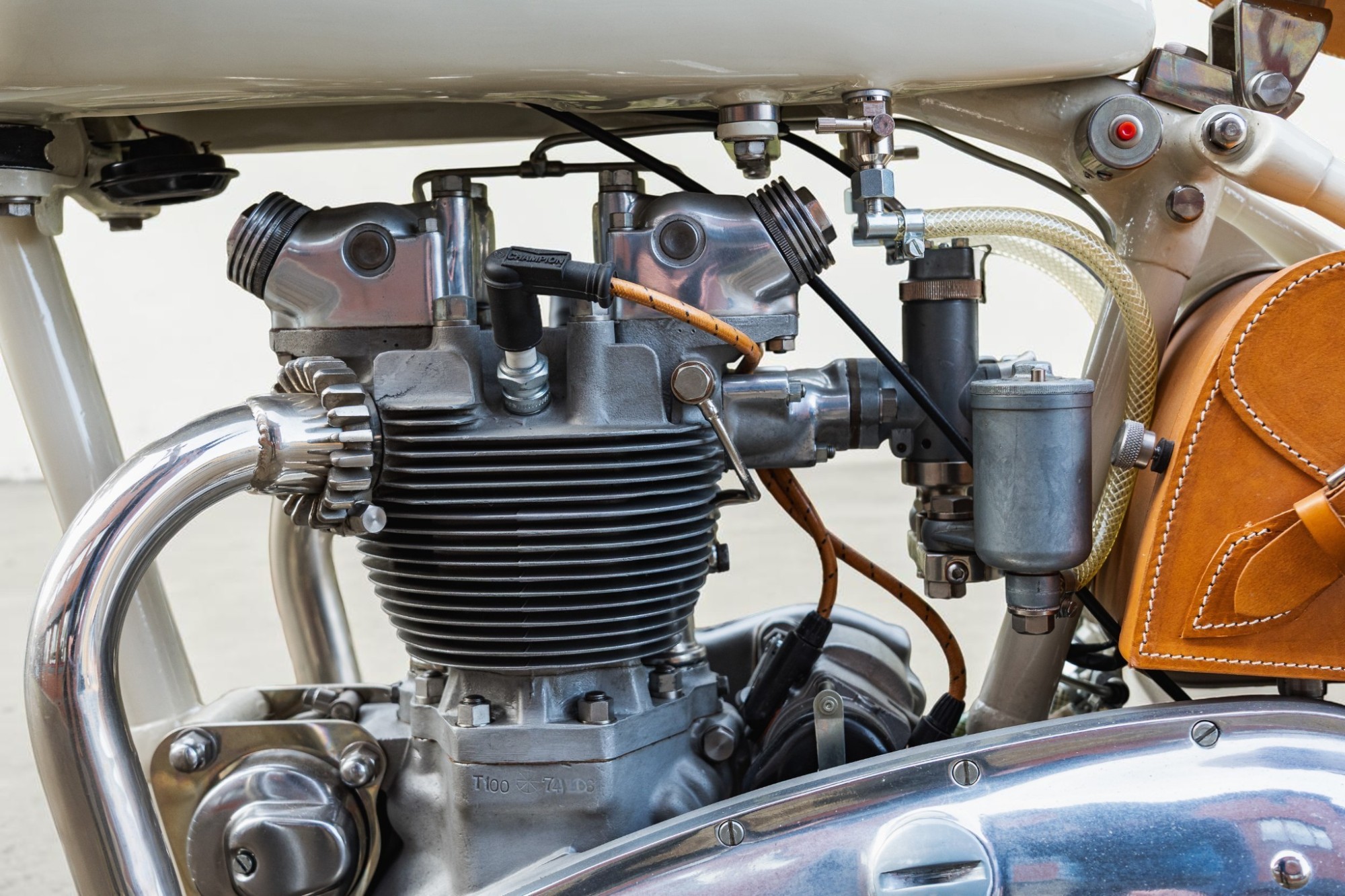

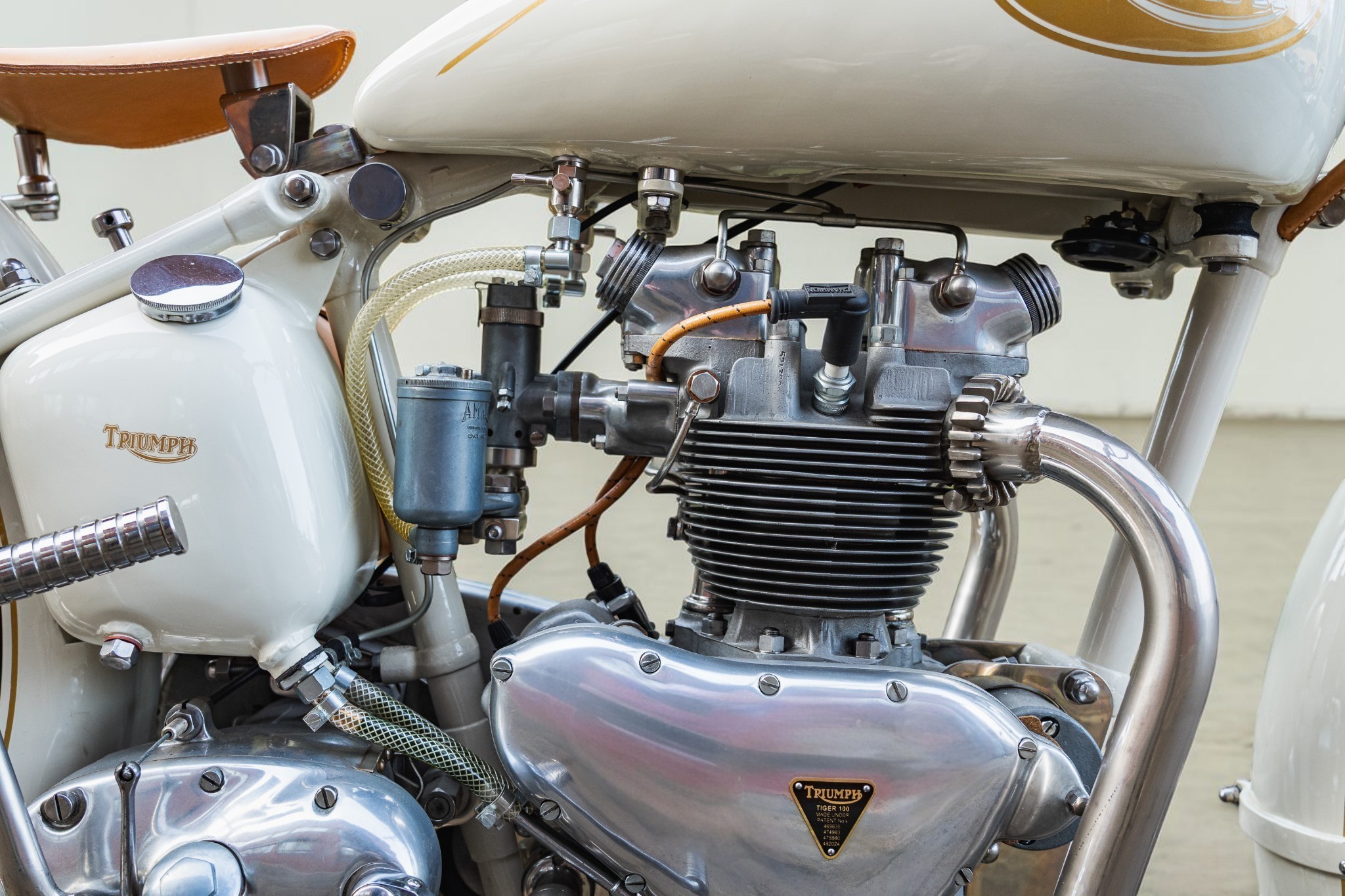

The 498cc Tiger 100 engine is a classic example of Edward Turner's compact parallel-twin philosophy. With a 63 mm bore and 80 mm stroke, the engine combines a relatively long stroke with a 360-degree crankshaft arrangement. Its overhead-valve cylinder heads and twin-cylinder configuration provide a smoother and more flexible character than the large single-cylinder engines that had dominated many earlier British sporting motorcycles.
For the 1946 specification, the engine was rated at approximately 30 horsepower at 6,500 rpm, with a compression ratio of approximately 7.8:1. A single Amal 276 carburetor supplied the engine, while BTH magneto ignition provided the independent ignition system. These specifications gave the T100 a strong performance profile while retaining the mechanical simplicity essential to a period British motorcycle.

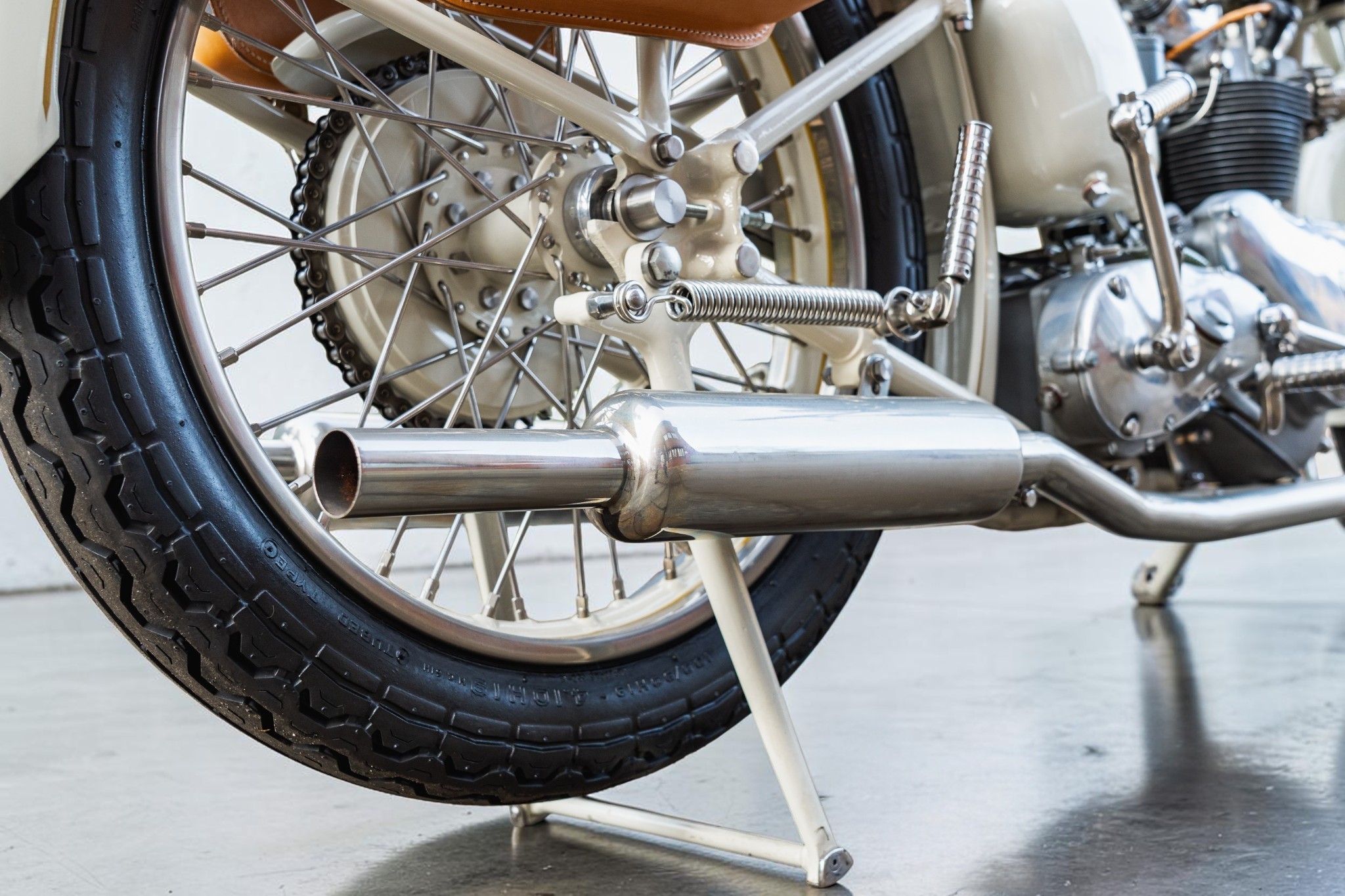

The four-speed gearbox was another important component of the Tiger 100's sporting character. The additional ratios allowed the rider to keep the engine within its useful operating range during faster road riding, while the conventional chain final drive kept the drivetrain straightforward and serviceable.

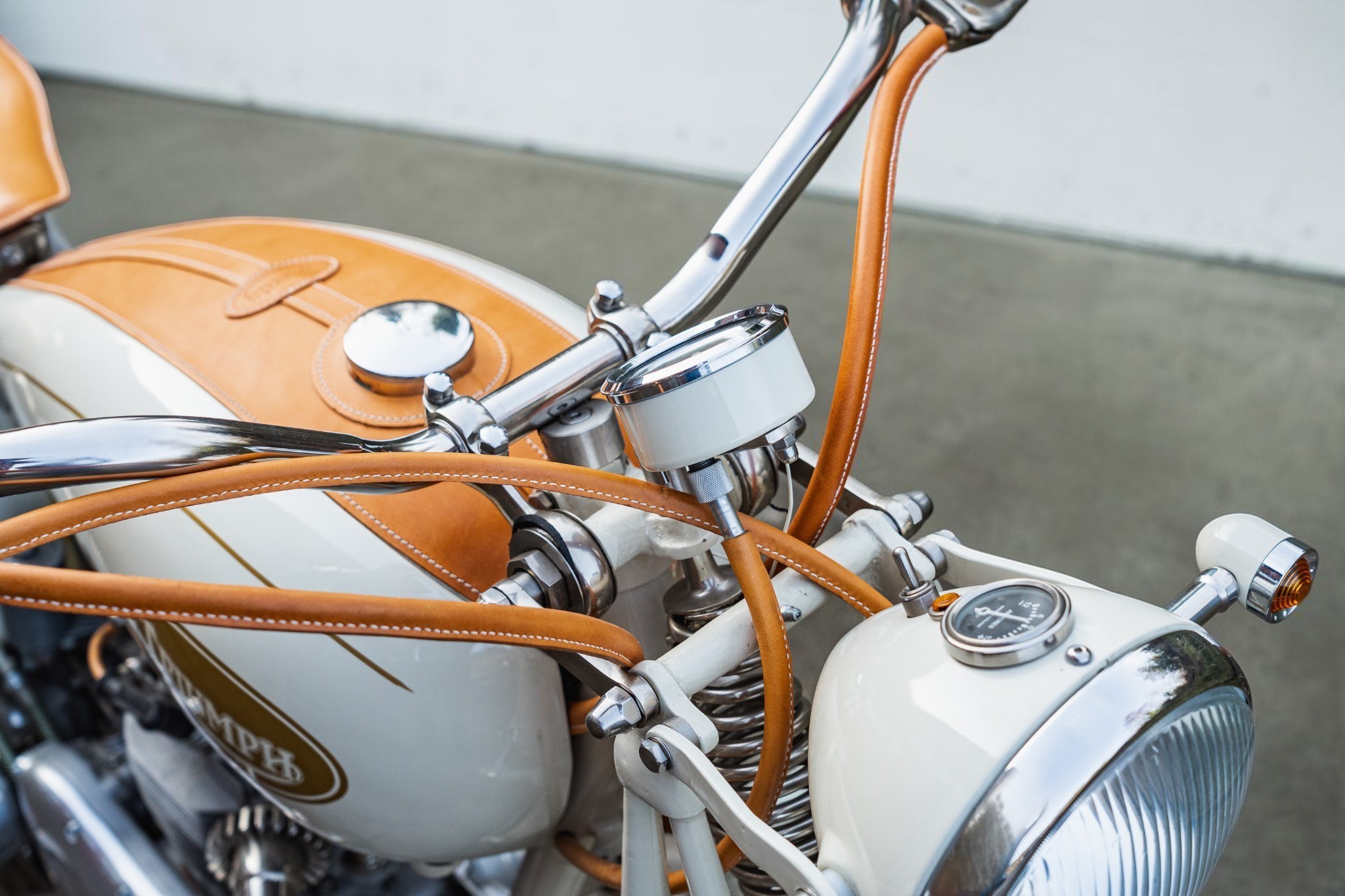

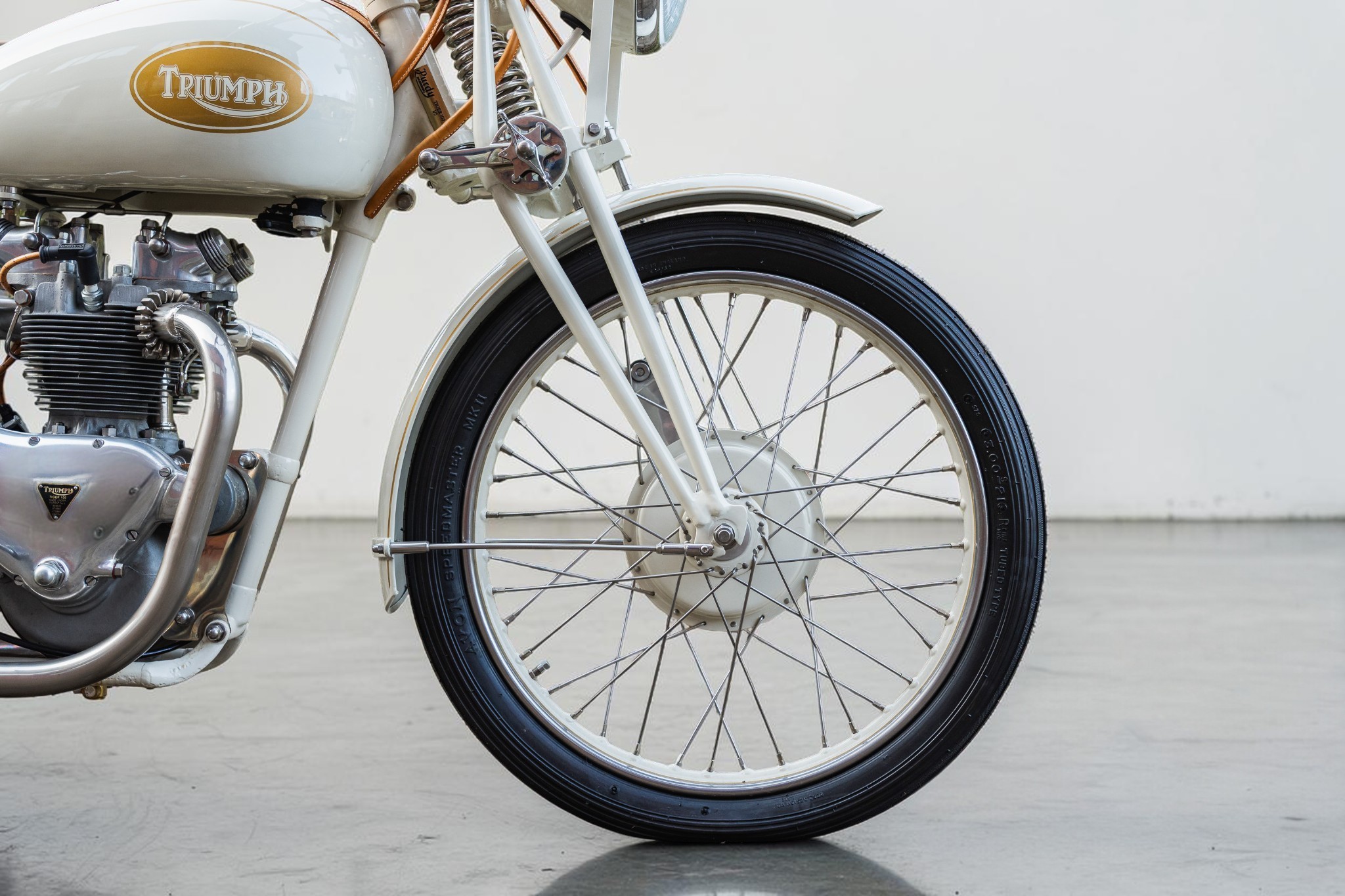

The 1946 telescopic fork was one of the most important engineering developments on the motorcycle. Replacing the earlier girder arrangement, it used internal springs and hydraulic damping with approximately 6.5 inches of travel. The fork was visually cleaner and represented a clear move toward the suspension technology that would become standard on post-war Triumph motorcycles.

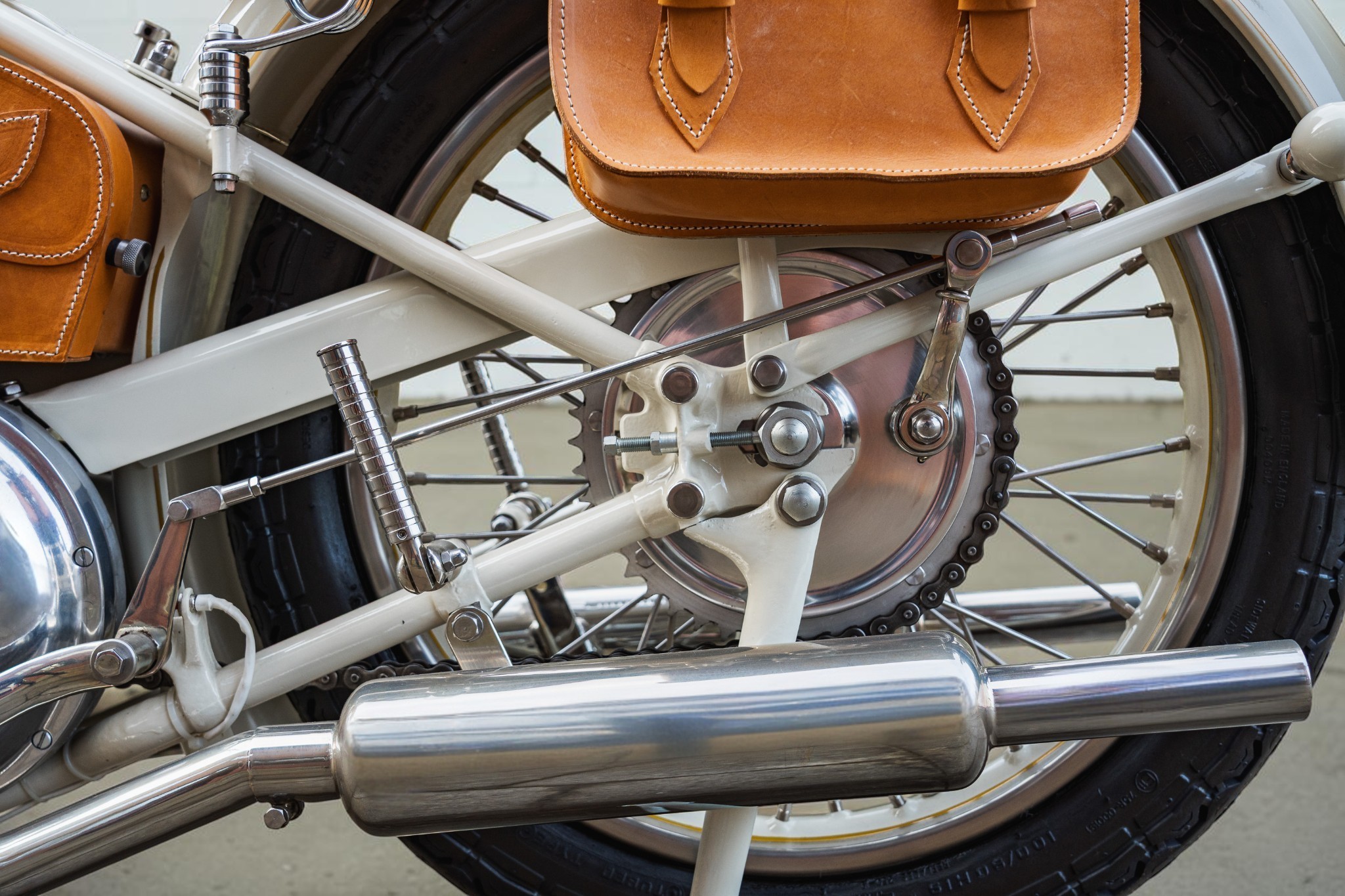

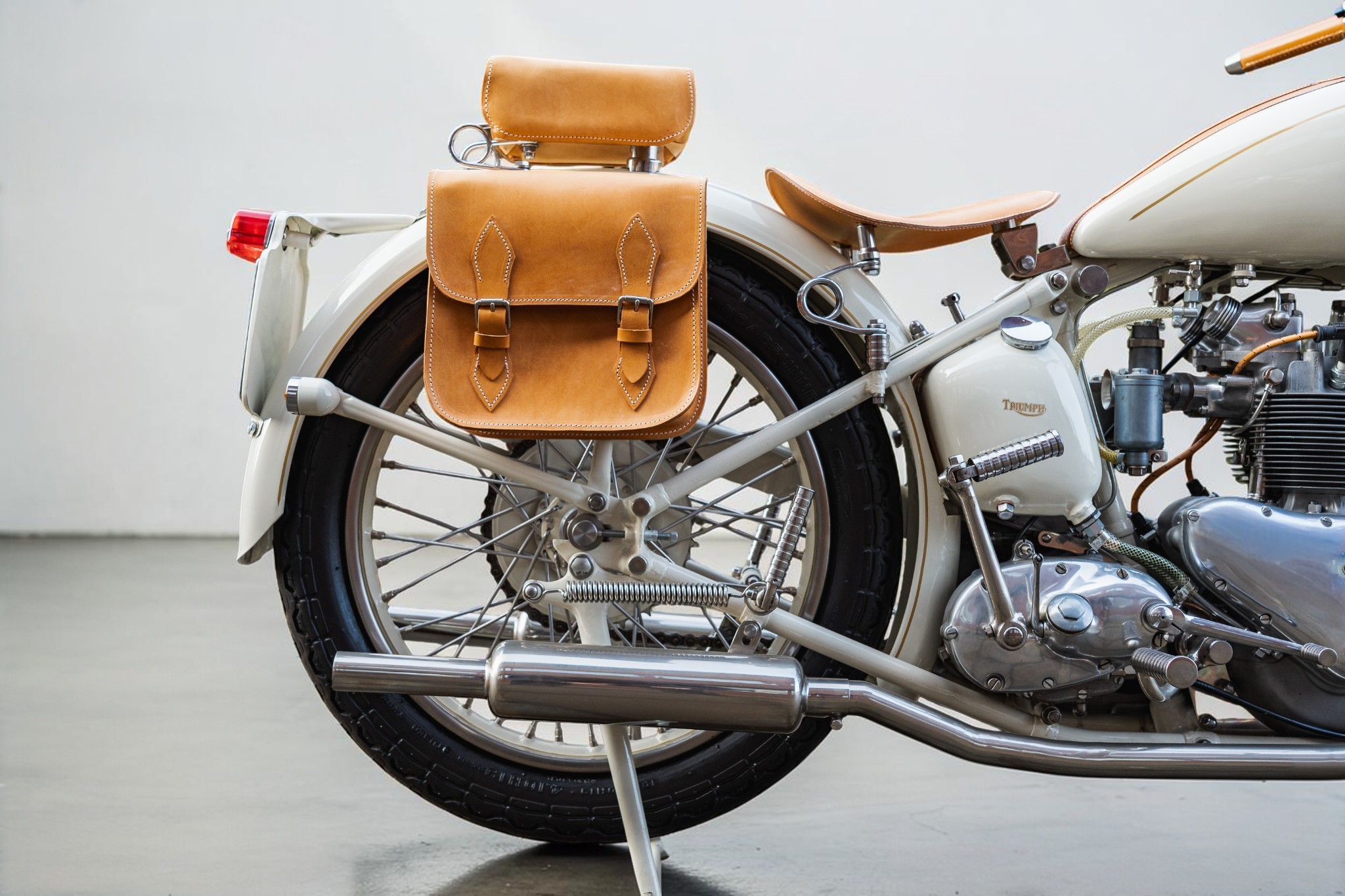

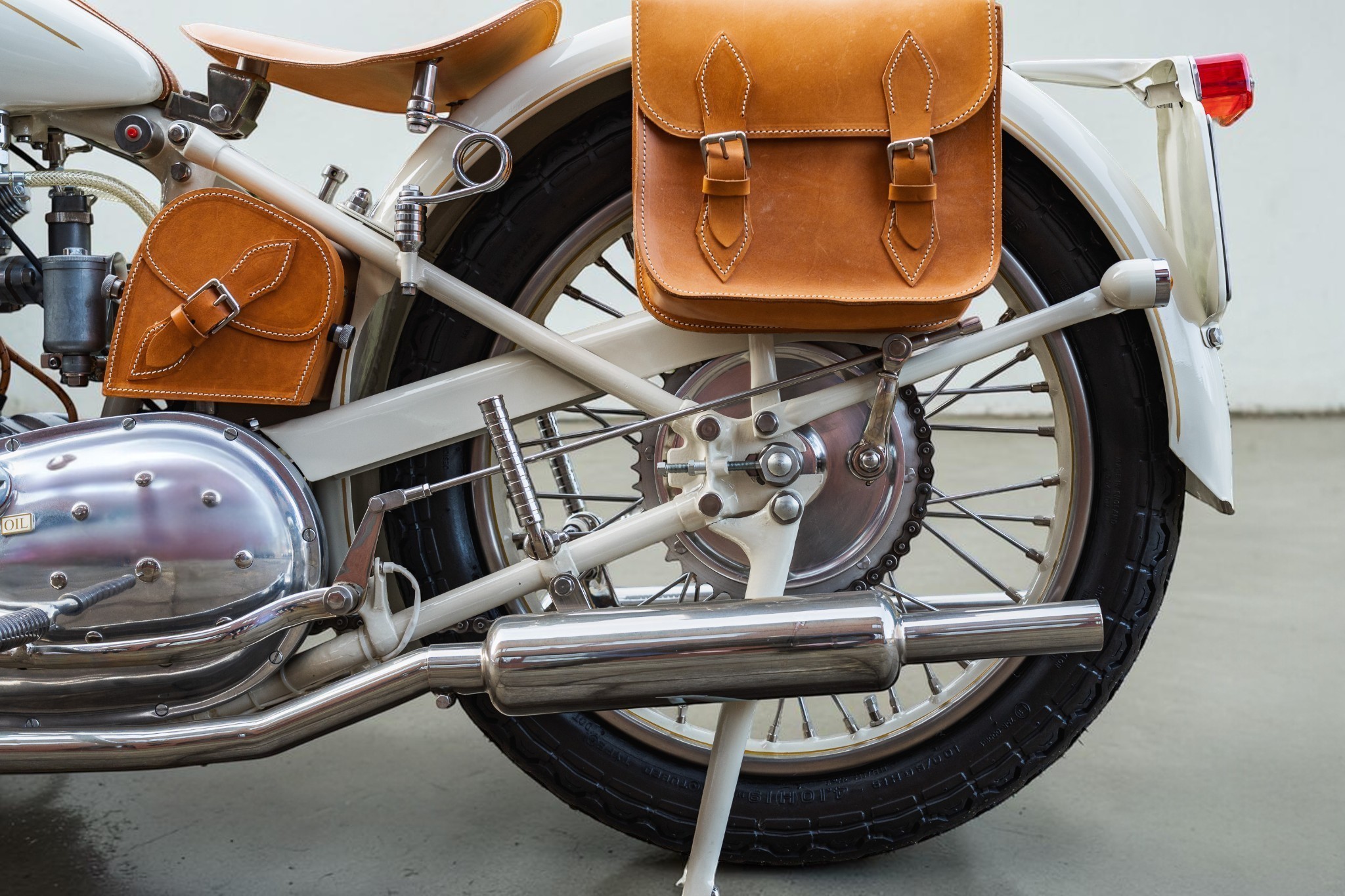

The rear chassis remained rigid on the standard 1946 T100, giving the motorcycle the direct and firm handling character associated with traditional British frames. Triumph was already investigating rear suspension alternatives, however, and the experimental sprung hub used on the Lyons competition machine demonstrated the company's interest in improving rear-wheel compliance.
Braking was provided by seven-inch drum brakes, while 19-inch wheels and relatively narrow period tires reflected the road conditions and tire technology of the era. The resulting motorcycle was substantial and stable rather than lightweight by modern standards, with the strong full-cradle frame contributing to its planted road manners.
The engineering philosophy of the Tiger 100 was therefore a balance between performance and durability. It was fast enough to serve as Triumph's sporting 500, but it retained the straightforward mechanical architecture that made British motorcycles of the period relatively accessible to owners and independent mechanics.
The 1946 Tiger 100 cannot be understood without considering Edward Turner's influence on Triumph. Turner's 1937 Speed Twin established the compact 498cc parallel-twin as one of the defining architectures of the Triumph brand. The same basic engineering philosophy continued through the post-war Tiger 100 and Speed Twin, eventually influencing a long succession of Triumph twins.
The Tiger 100 represented the performance-oriented expression of that architecture. While the Speed Twin was positioned as a fast and versatile road motorcycle, the T100 emphasized sporting performance, competition credibility, and a more aggressive mechanical specification.
This distinction became particularly important after the war, when Triumph was rebuilding its international reputation. The company needed motorcycles that could appeal to export markets while also demonstrating that British engineering remained competitive in performance and reliability.
The Tiger 100 served that role extremely well. Its compact 500cc twin-cylinder engine offered a combination of smoothness, performance, and manageable weight that helped establish the basic formula for many of Triumph's later sporting motorcycles.
The 1946 Manx Grand Prix is one of the most important chapters in the history of the Triumph Tiger 100. Ernie Lyons took victory in the 500cc class on a Triumph developed by Freddie Clarke, providing the company with a major post-war racing success.
The Lyons machine was a specialized competition motorcycle rather than an untouched production T100. Its engine incorporated wartime development work and the machine used an experimental sprung rear hub. This distinction is important for collectors because it separates the factory racing machine from the specification of an original road-going 1946 Tiger 100.
Nevertheless, the victory demonstrated the potential of Triumph's 500cc twin-cylinder engineering at a time when the company was re-establishing itself in international motorcycle competition. The race also helped establish the technical direction that would lead to the Triumph Grand Prix factory racers of 1948.
For a collector, this competition connection gives the 1946 T100 an unusually strong historical identity. It is one of the production Triumph models closest in time to the company's immediate post-war racing revival and to the development of the machines that would compete at the highest level during the late 1940s.
The 1946 Triumph Tiger 100 occupies a particularly important position within the history of British motorcycles. It combines the pre-war sporting Tiger 100 lineage with the engineering changes that defined Triumph's post-war motorcycles, making it an important transitional model.
Its historical importance is strengthened by the fact that 1946 marked Triumph's return to civilian motorcycle production after the war. The model was part of the company's carefully focused post-war range and helped establish the direction of Triumph's motorcycle business for the following decade.
The introduction of telescopic forks is another reason the 1946 model deserves collector attention. This was one of the first major visual and mechanical changes separating the post-war Tiger 100 from its pre-war predecessors. A correctly specified 1946 motorcycle therefore provides a clear snapshot of Triumph's transition from Vintage-era chassis engineering to modern post-war suspension design.
The T100's connection with Ernie Lyons and the 1946 Manx Grand Prix adds a significant layer of competition history. Although the production machine and the race bike should not be confused, both belong to the same important period in Triumph's development of its 500cc sporting twin.
For collectors of early British motorcycles, the 1946 Tiger 100 also offers an important Edward Turner-era motorcycle with a strong mechanical identity. The 498cc OHV parallel twin, four-speed transmission, telescopic fork, and rigid frame represent a transitional specification that would soon evolve as Triumph continued improving its post-war chassis and engine technology.
Originality and specification are particularly important when evaluating an early post-war T100. Correct engine and frame numbers, period-correct electrical equipment, appropriate Amal carburetion, the correct telescopic fork, and authentic chassis components can significantly improve the historical integrity of a surviving example.
This 1946 Triumph Tiger 100 T100 represents one of the defining moments in the return of British motorcycling to civilian production after the Second World War. Its 498cc OHV parallel-twin engine, four-speed transmission, new-for-1946 telescopic fork, and Edward Turner engineering heritage make it an especially significant early post-war Triumph.
The model's historical importance is further reinforced by Triumph's 1946 competition success, when Ernie Lyons won the Manx Grand Prix on a specially developed Tiger 100-based machine. That achievement helped launch Triumph's post-war racing revival and ultimately contributed to the development of the company's Grand Prix motorcycles.
For collectors of vintage Triumph motorcycles, early British parallel twins, Edward Turner designs, and post-war competition history, the 1946 T100 offers a compelling combination of engineering significance, sporting character, and historical provenance.
Worldwide shipping is available. Contact us for additional photographs, detailed specification information, engine and frame numbers, restoration details, provenance, and purchasing information for this 1946 Triumph Tiger 100 T100.
