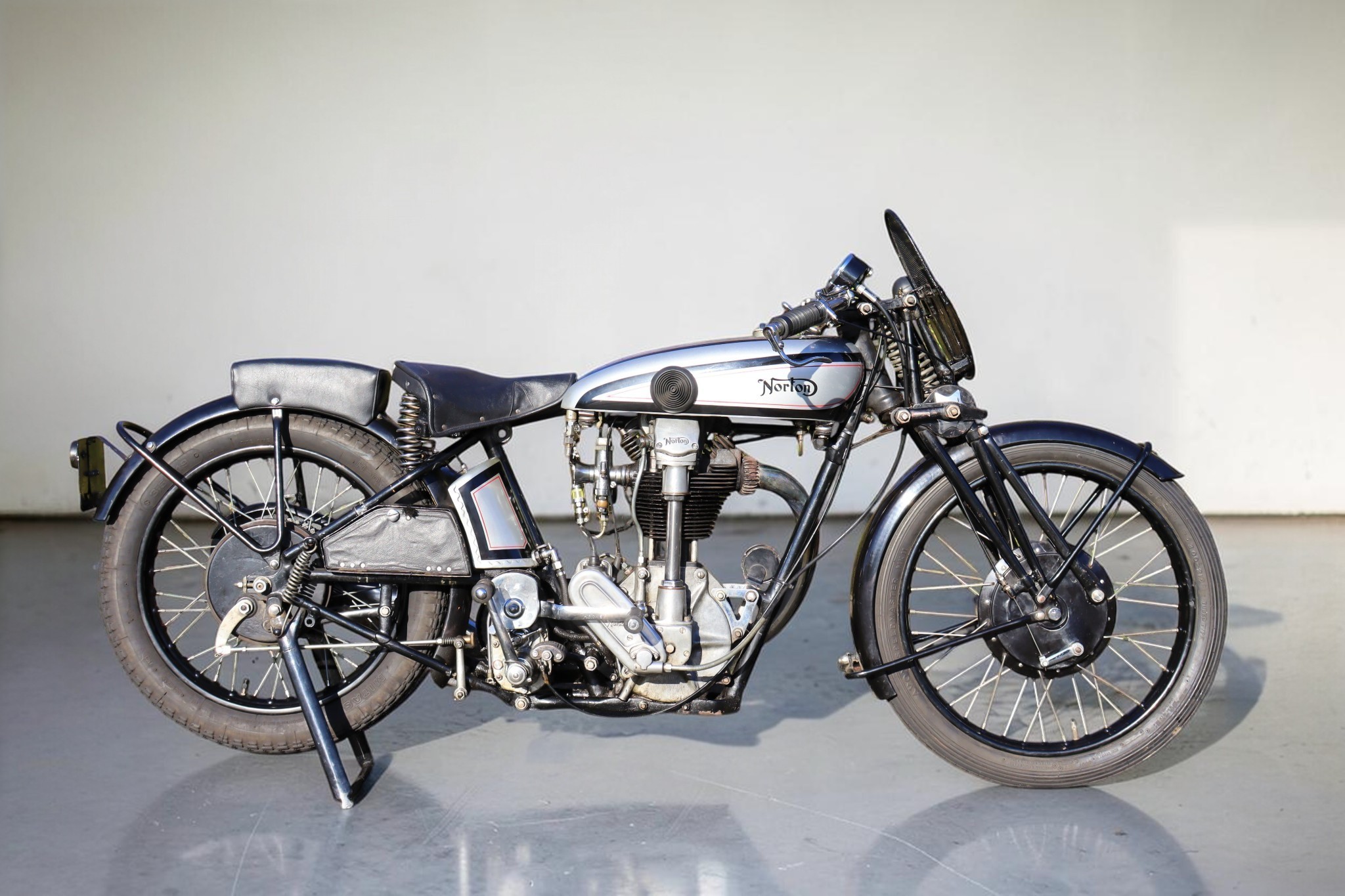

The 1930 Norton CS1 is one of the most historically significant British overhead-camshaft motorcycles of the pre-war era. The CS1, meaning Camshaft Model One, was developed from Norton's early overhead-camshaft racing machines and became an important sporting road motorcycle during the transition from the original Walter Moore engine to the redesigned Arthur Carroll power unit.
The 1930 model is particularly important because it represents the transition period in Norton overhead-camshaft development. Walter Moore's original CS1 design had established Norton's new camshaft-engine technology, but Moore left Norton for NSU in 1930. Arthur Carroll and Joe Craig subsequently developed a substantially revised overhead-camshaft engine that became the foundation of Norton's highly successful later racing engines.
The CS1 uses a 490 cc single-cylinder overhead-camshaft four-stroke engine. Its combination of a relatively light chassis, sporting engine, and Norton racing heritage made the CS1 one of the company's most desirable motorcycles for serious road riders.
The 1930 CS1 is especially interesting to collectors because it belongs to the final period of the original Moore-designed CS1 and the beginning of the Carroll-designed engine era.
Norton's first overhead-camshaft racing engine appeared in 1927. Designed by Walter Moore and based closely on the company's ES2 overhead-valve engine, the new engine used bevel gears and a vertical shaft to drive the overhead camshaft.
The new machine immediately demonstrated its potential when Alec Bennett won the 1927 Senior Isle of Man TT on the overhead-camshaft Norton. The production CS1 subsequently became Norton's top sporting motorcycle.
The CS1 continued through the late 1920s, but reliability and development issues affected the original Moore engine. Walter Moore left Norton in 1930 to join NSU, taking his OHC design experience with him.
Arthur Carroll subsequently became responsible for redesigning Norton's overhead-camshaft engine, with Joe Craig also playing an important role in development. The Carroll engine first appeared during 1930 and became the basis for Norton's later International and Manx racing engines.
The 1930 CS1 is therefore an important transitional motorcycle. Depending on exact production date and specification, surviving examples may represent the late Moore-engine period or the earliest Carroll-engine development.
Provenance is especially valuable with early CS1 motorcycles because many surviving machines were modified for racing or rebuilt using later Norton components. Original frame and engine numbers, factory records, period photographs, registration documents, and documented ownership history can provide important evidence of authenticity.

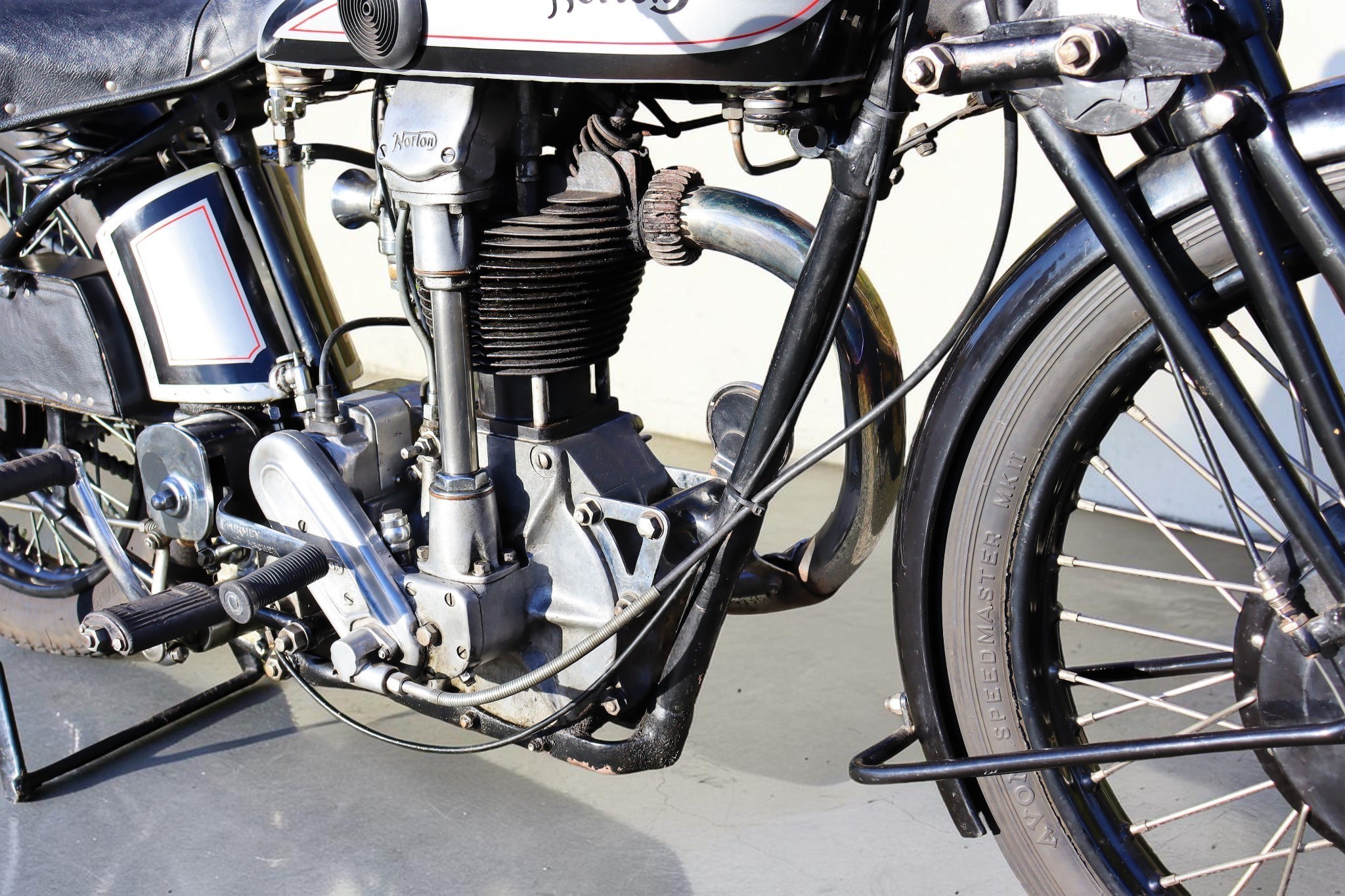

The 1930 Norton CS1 is powered by a 490 cc single-cylinder four-stroke overhead-camshaft engine.

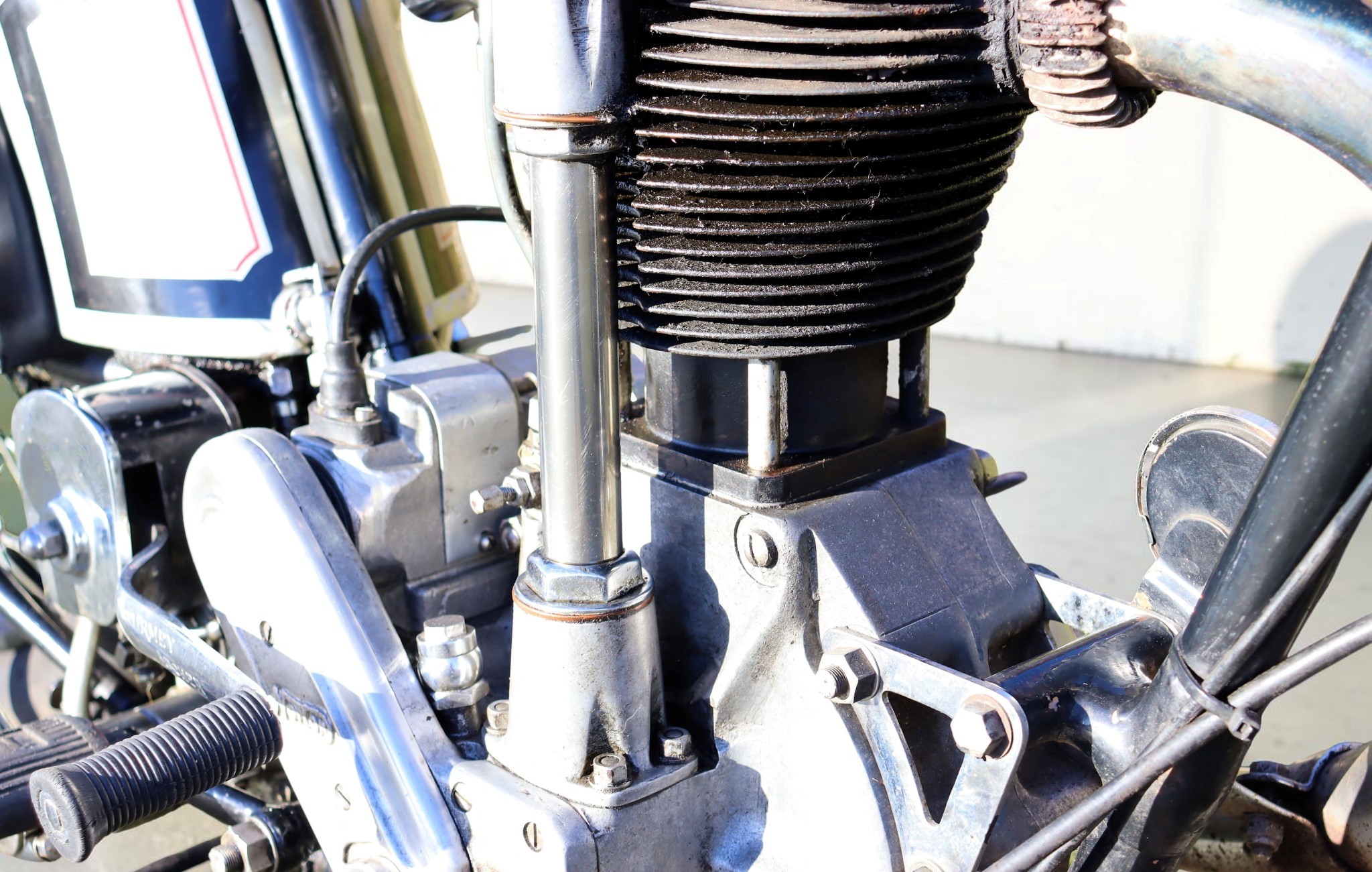

The engine uses Norton's characteristic bevel-driven overhead camshaft arrangement. A vertical shaft and bevel gears transmit drive from the crankcase to the camshaft positioned above the cylinder.
The original CS1 engine was developed by Walter Moore from the Norton ES2 architecture and retained the traditional Norton bore and stroke dimensions of approximately 79 mm by 100 mm.
The overhead-camshaft layout allowed Norton to achieve higher engine speeds and improved valve control compared with the company's traditional pushrod engines.
The CS1 was developed with sporting performance in mind, although by the early 1930s the model was increasingly positioned as a fast road and touring motorcycle while the newer International became Norton's principal customer racing machine.
Published specifications for the 1930 490 cc CS1 commonly place output in the region of 25 horsepower and top speed around 80 mph, although actual performance varies substantially with engine specification, gearing, carburetion, ignition, and condition.
The 1930 CS1 uses a period Norton manual transmission paired with the overhead-camshaft single-cylinder engine.
Early CS1 machines were developed with sporting gearing intended to make effective use of the engine's higher-revving characteristics.
The transmission and clutch were designed for the demands of sporting road use and competition-derived riding.

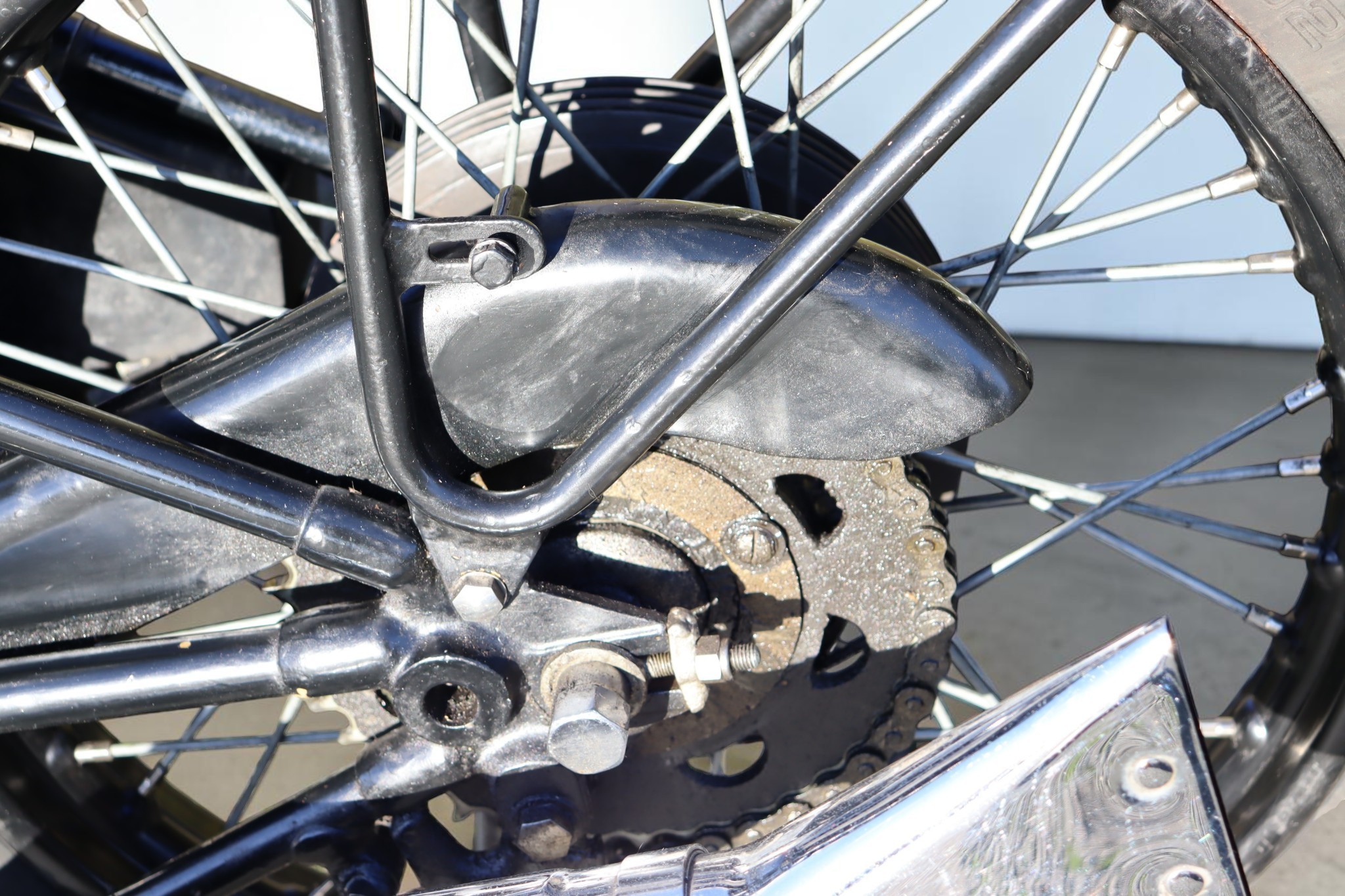

Power is transmitted to the rear wheel through a chain final drive.
The clutch, gearbox, primary drive, chain, sprockets, bearings, and rear hub should all be inspected carefully on a surviving CS1.
Because many CS1 motorcycles were later converted or upgraded for racing, replacement gear clusters, altered ratios, competition clutches, and other non-original drivetrain components are relatively common.
The CS1 introduced an important new Norton chassis design for the company's overhead-camshaft motorcycles.
The early CS1 used a full cradle frame with three chainstays, providing a substantial foundation for the sporting single-cylinder engine.
The frame was developed with racing and sporting use in mind and contributed to the motorcycle's stable handling characteristics.

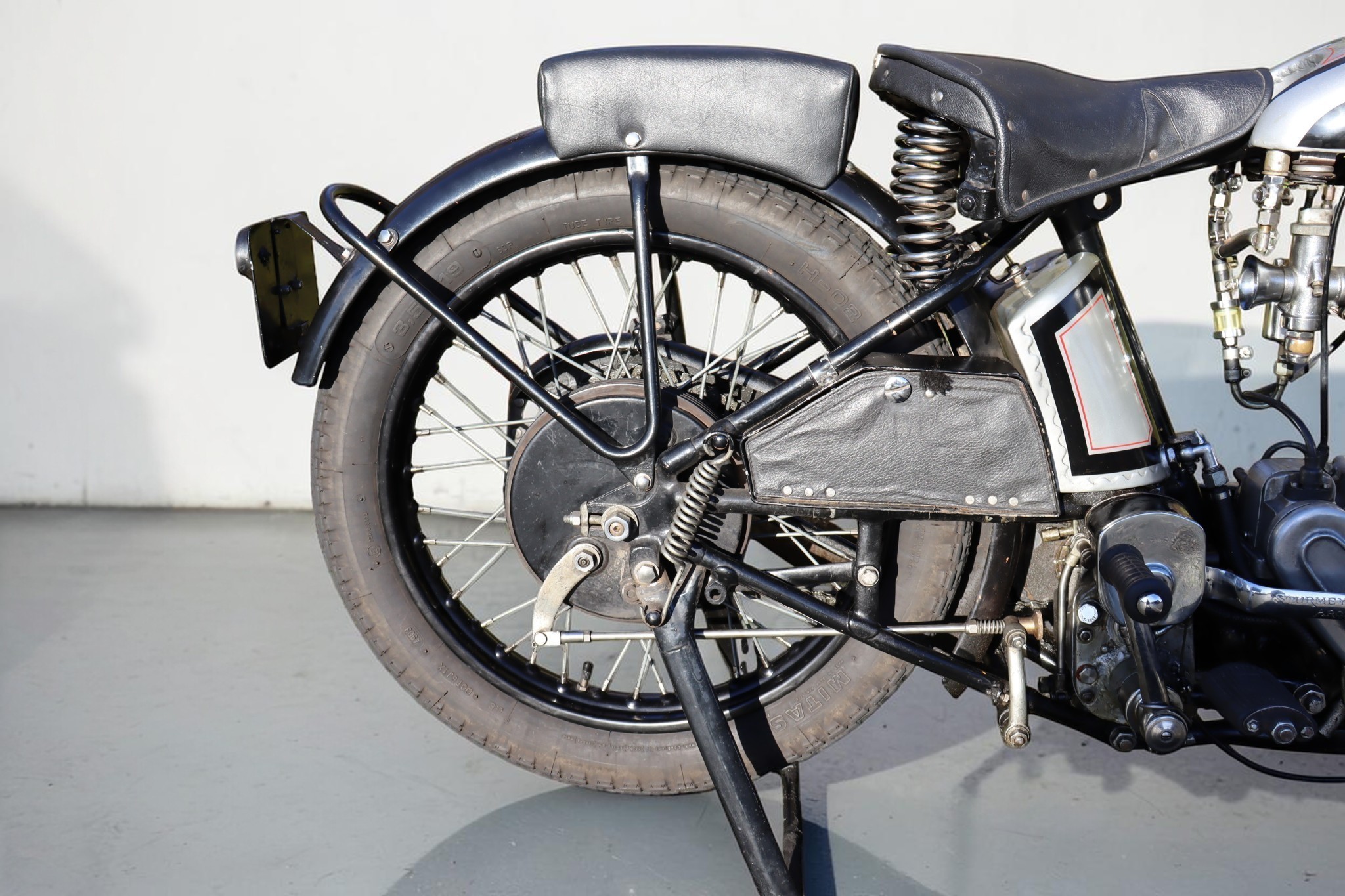

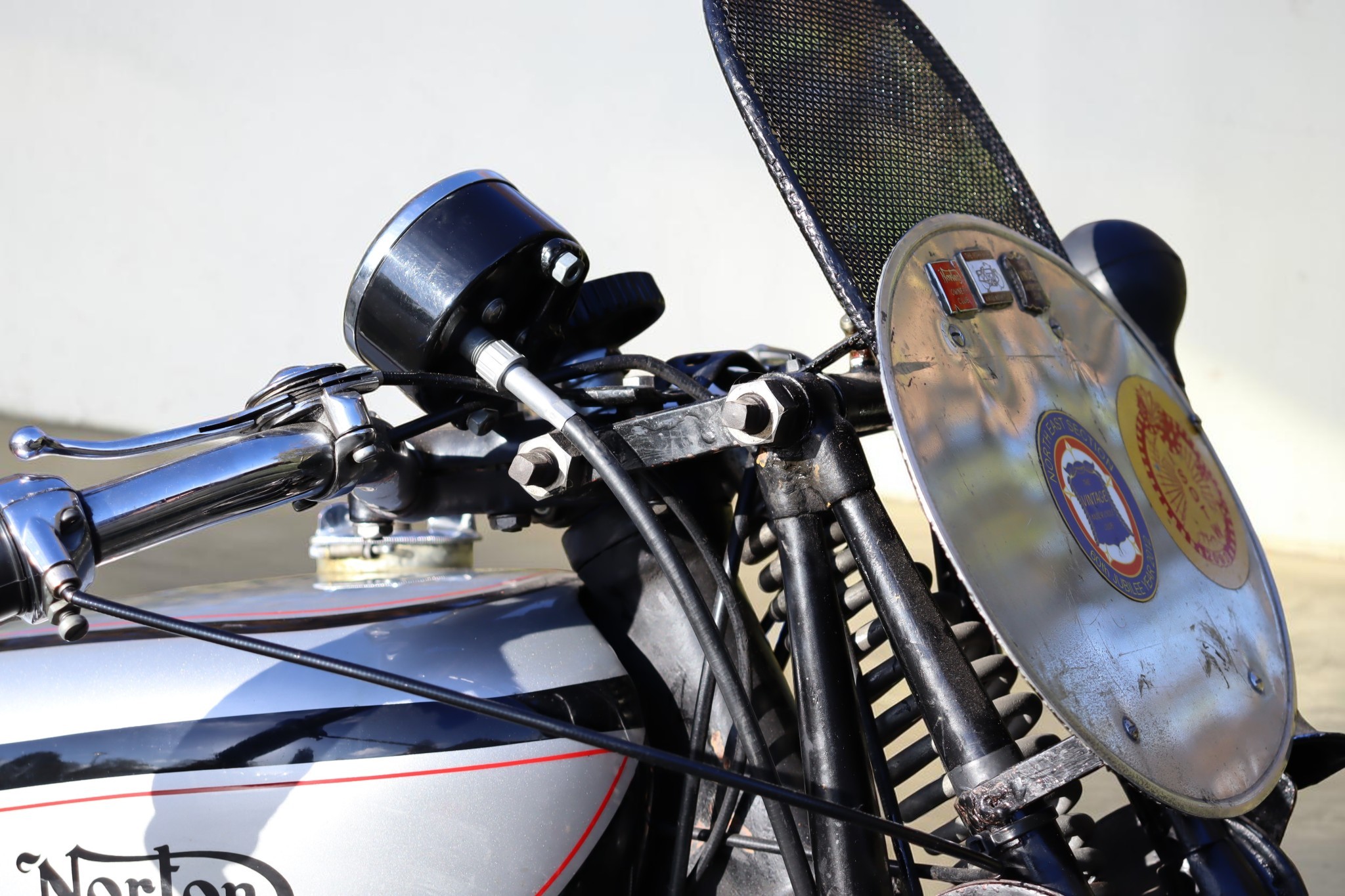

Period Norton forks provided the front suspension, while the rear of the motorcycle used a rigid frame arrangement typical of the era.
Frame alignment is particularly important when evaluating an early CS1 because racing use and decades of modification can result in repairs, altered mounts, or replacement components.
The steering head, frame tubes, engine mounting points, fork components, rear axle alignment, and chainstays should all be inspected carefully.

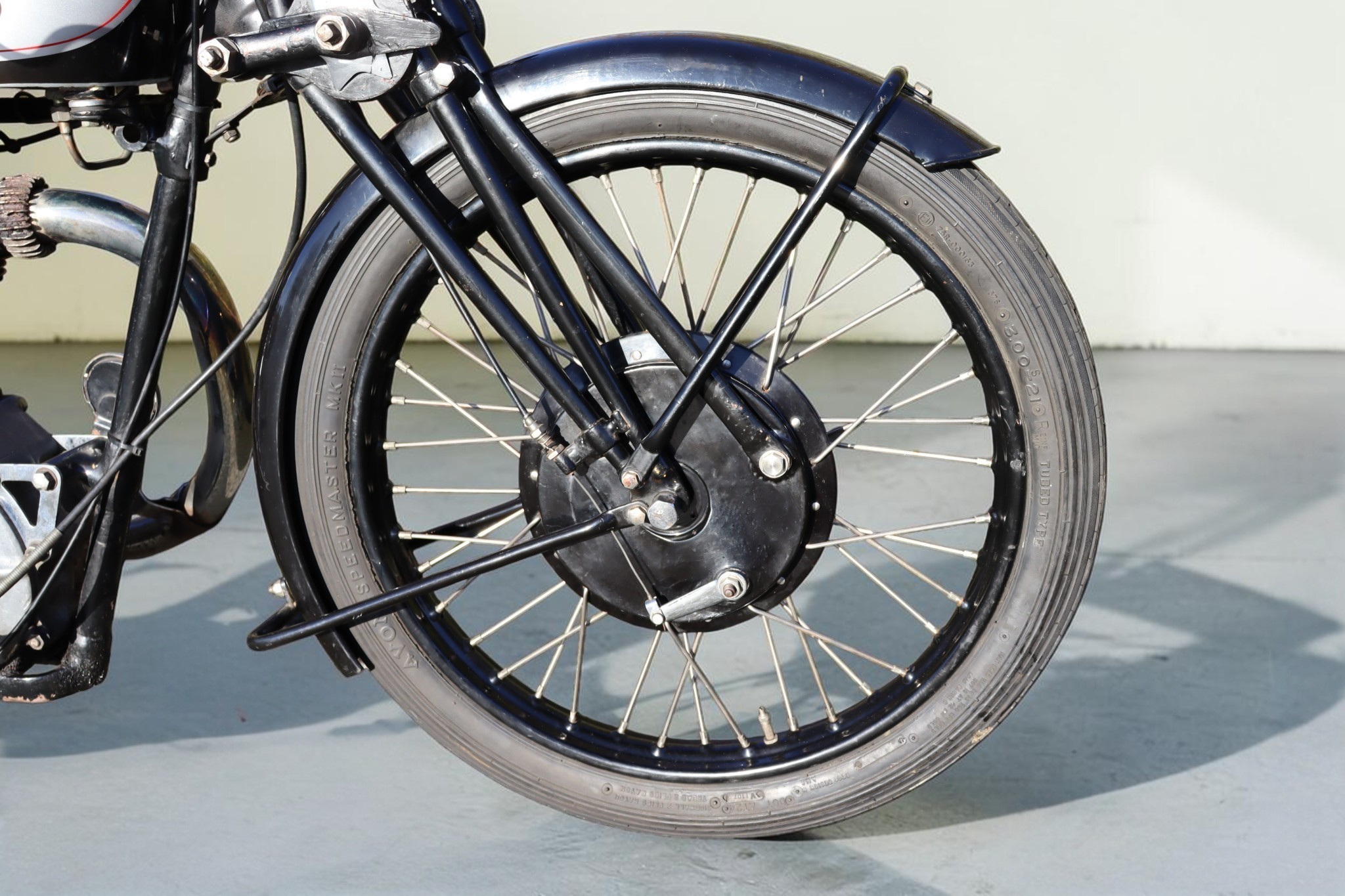

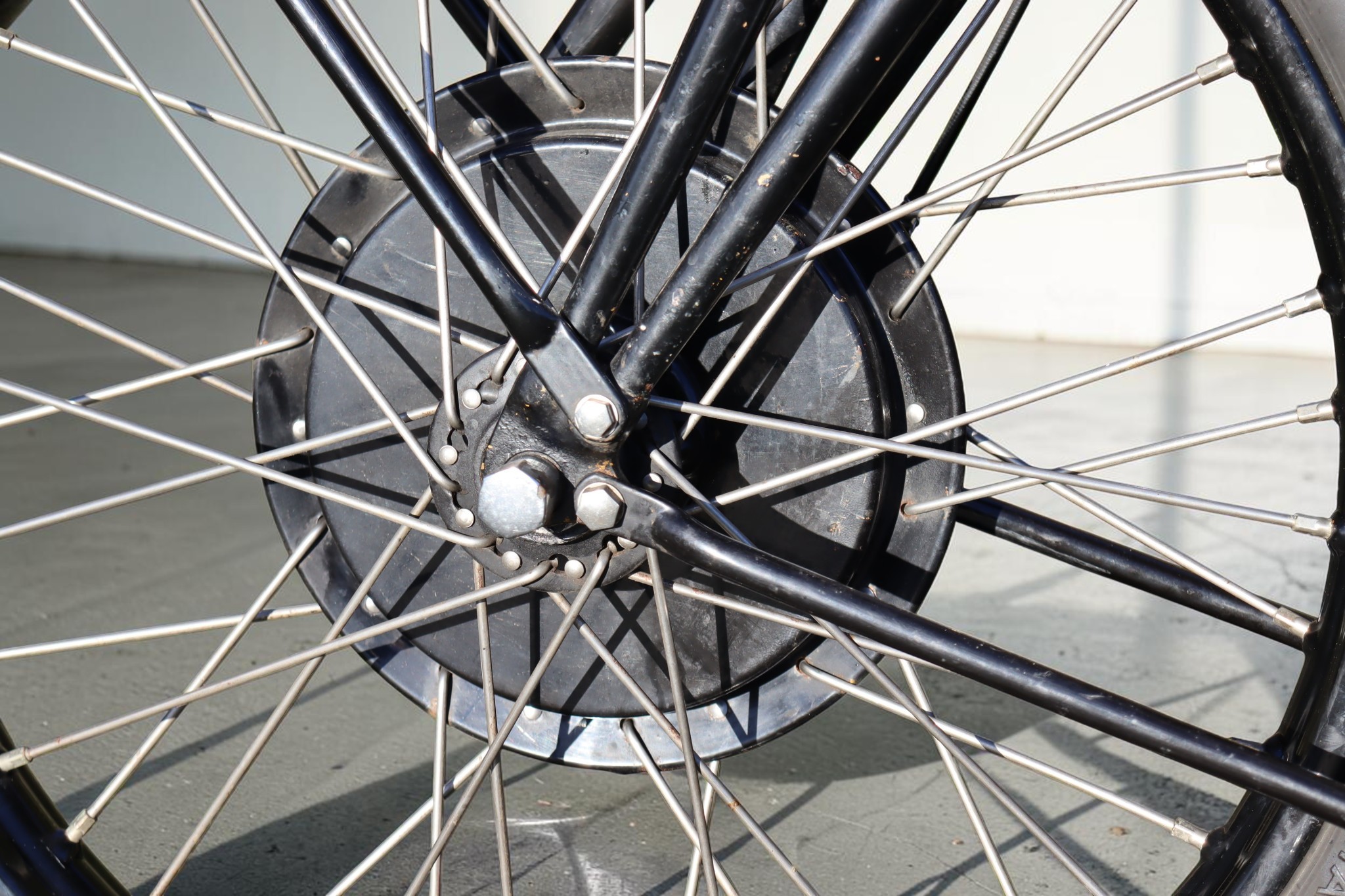

The 1930 Norton CS1 uses wire-spoked wheels and period drum brakes.
The wheels were designed to provide a balance between strength and low weight, appropriate to a sporting motorcycle of the period.
Period braking equipment uses mechanical drum brakes rather than hydraulic systems.
Brake drums, shoes, operating mechanisms, cables, wheel bearings, spokes, rims, and tires should all be inspected before riding.
Early sporting Nortons were often modified with competition equipment, so the originality of the wheels and brake assemblies should be established individually.
The 1930 Norton CS1 uses period British motorcycle electrical and ignition equipment.
Sporting CS1 specification could include competition-oriented ignition equipment, while road motorcycles were equipped according to their intended use and factory specification.
Magneto equipment, generator or dynamo components, headlamp, switches, wiring, horn, and rear lighting should be checked for correct period specification.
Many surviving CS1 motorcycles have received rebuilt magnetos, replacement wiring, later electrical equipment, or modern internal components during restoration.
Correct period electrical equipment can therefore be an important part of an originality assessment.

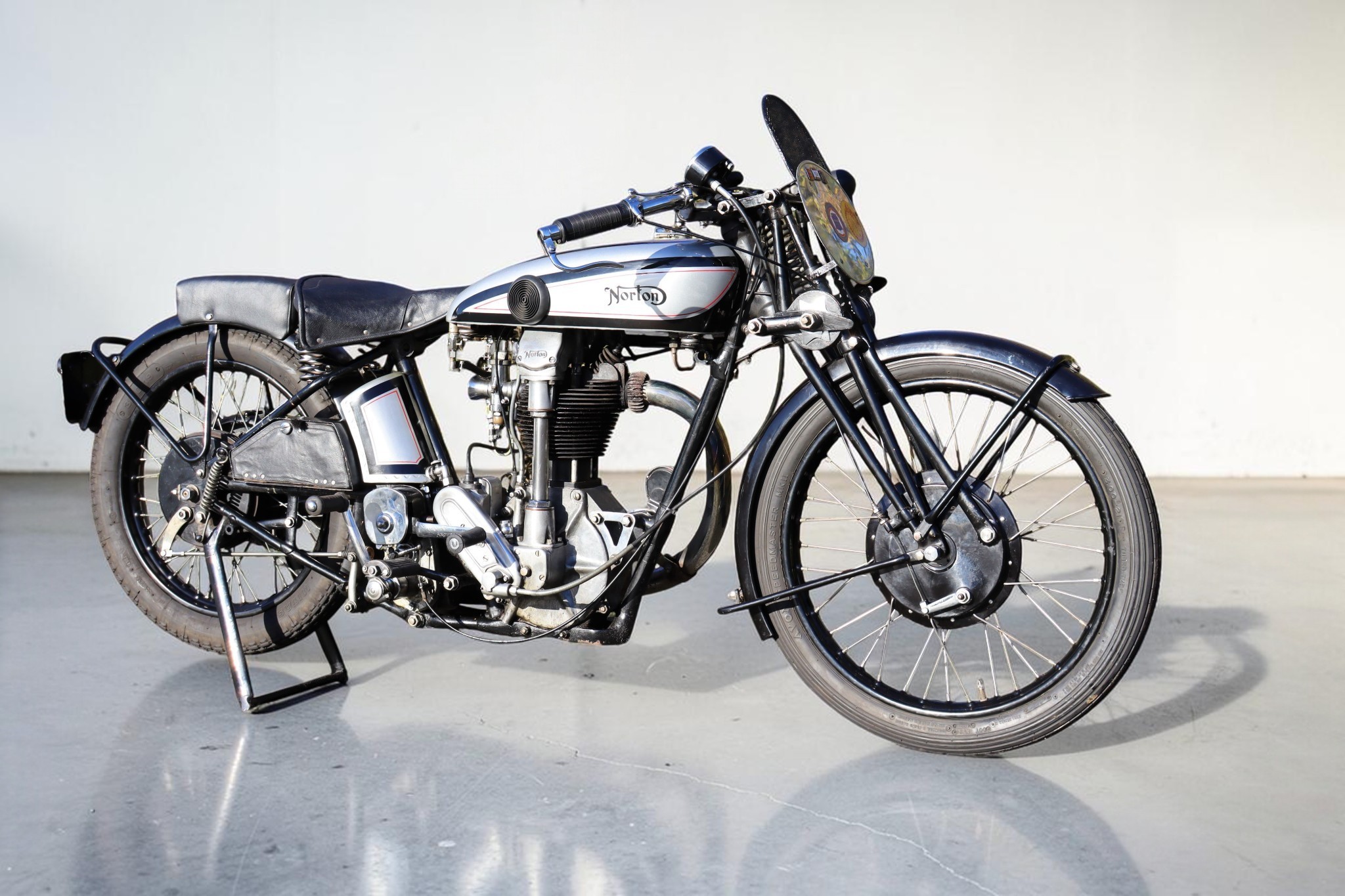

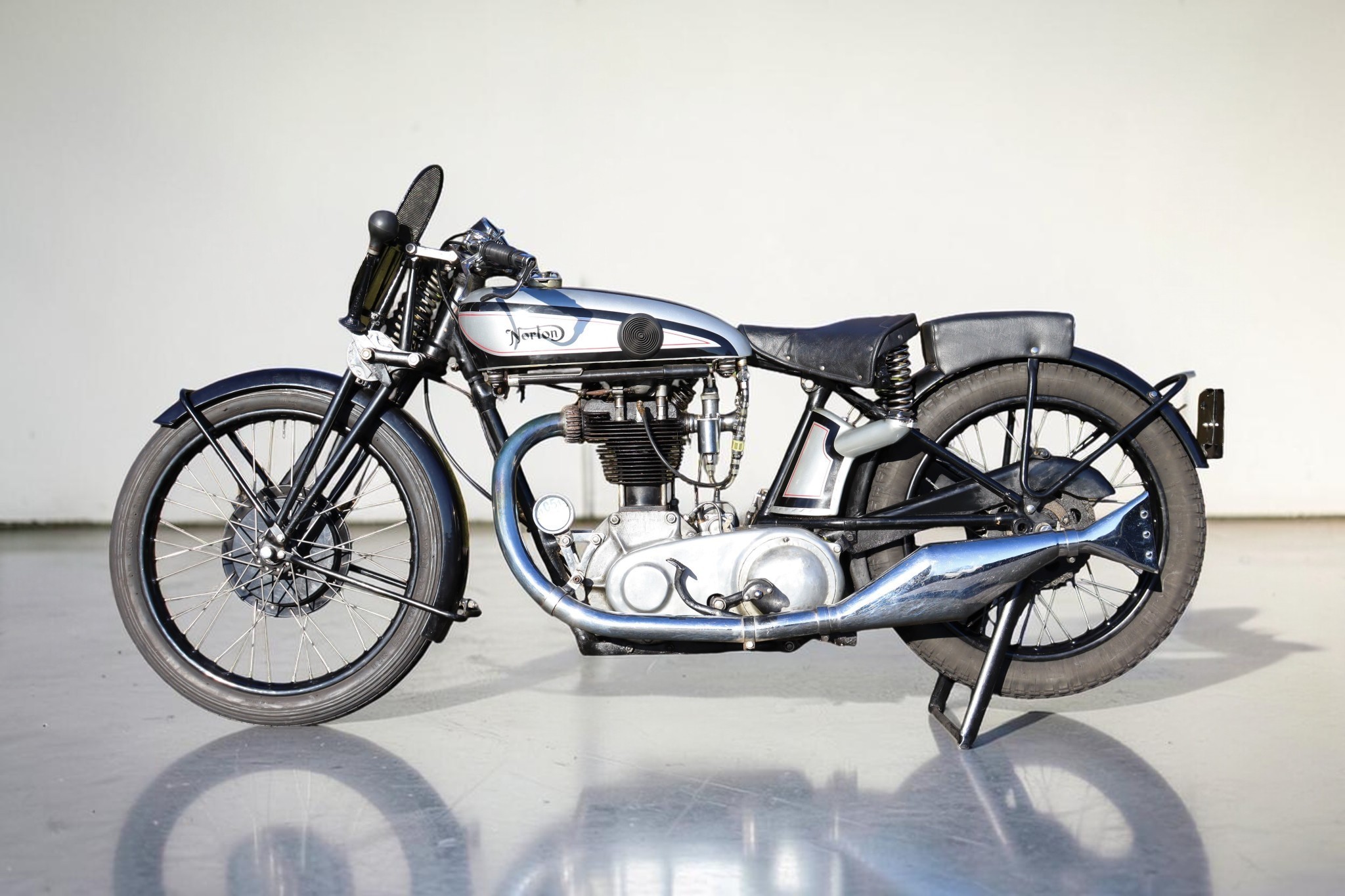

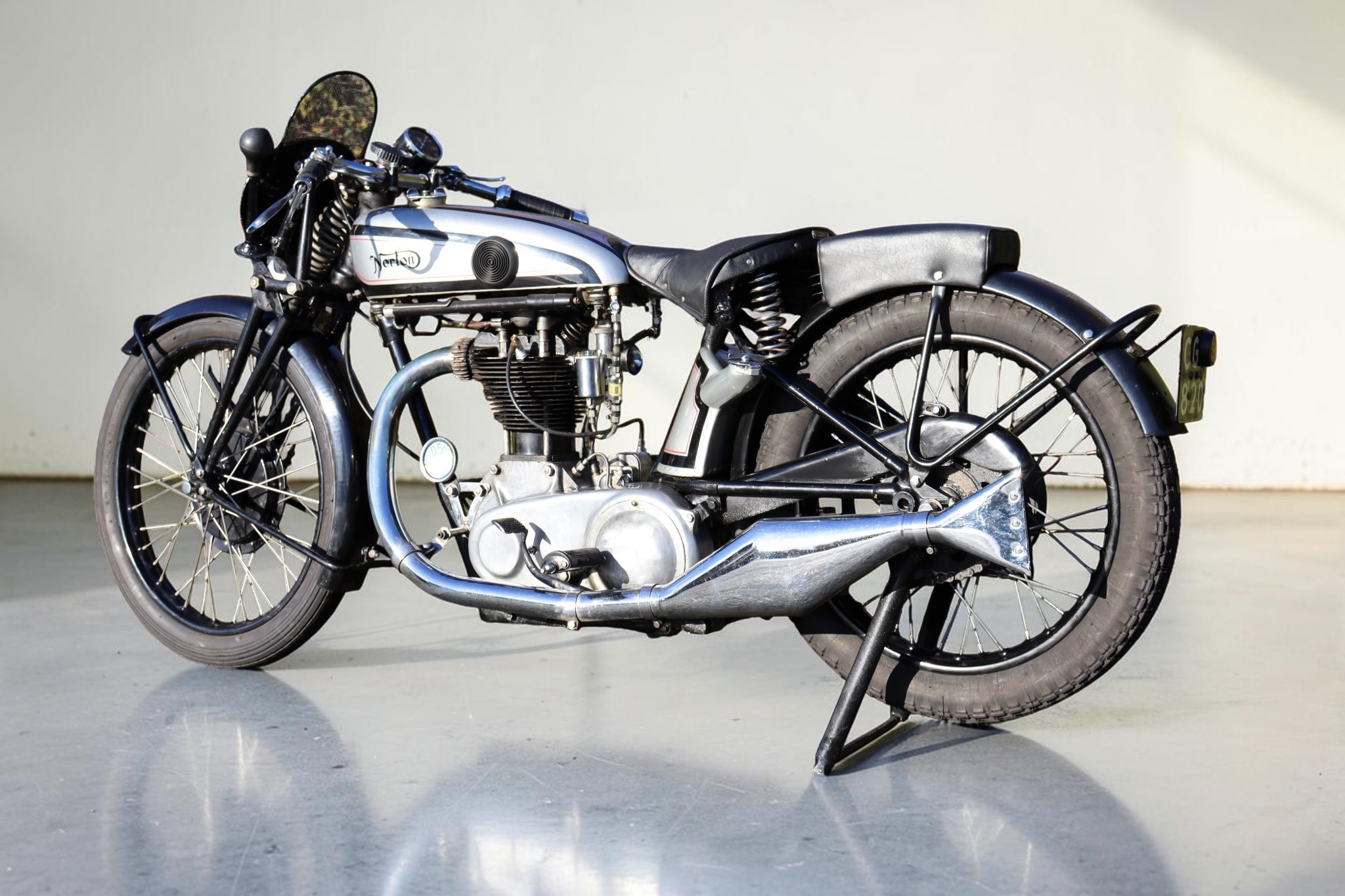

The 1930 Norton CS1 has a distinctly sporting appearance that reflects its direct connection with Norton's successful TT racing program.

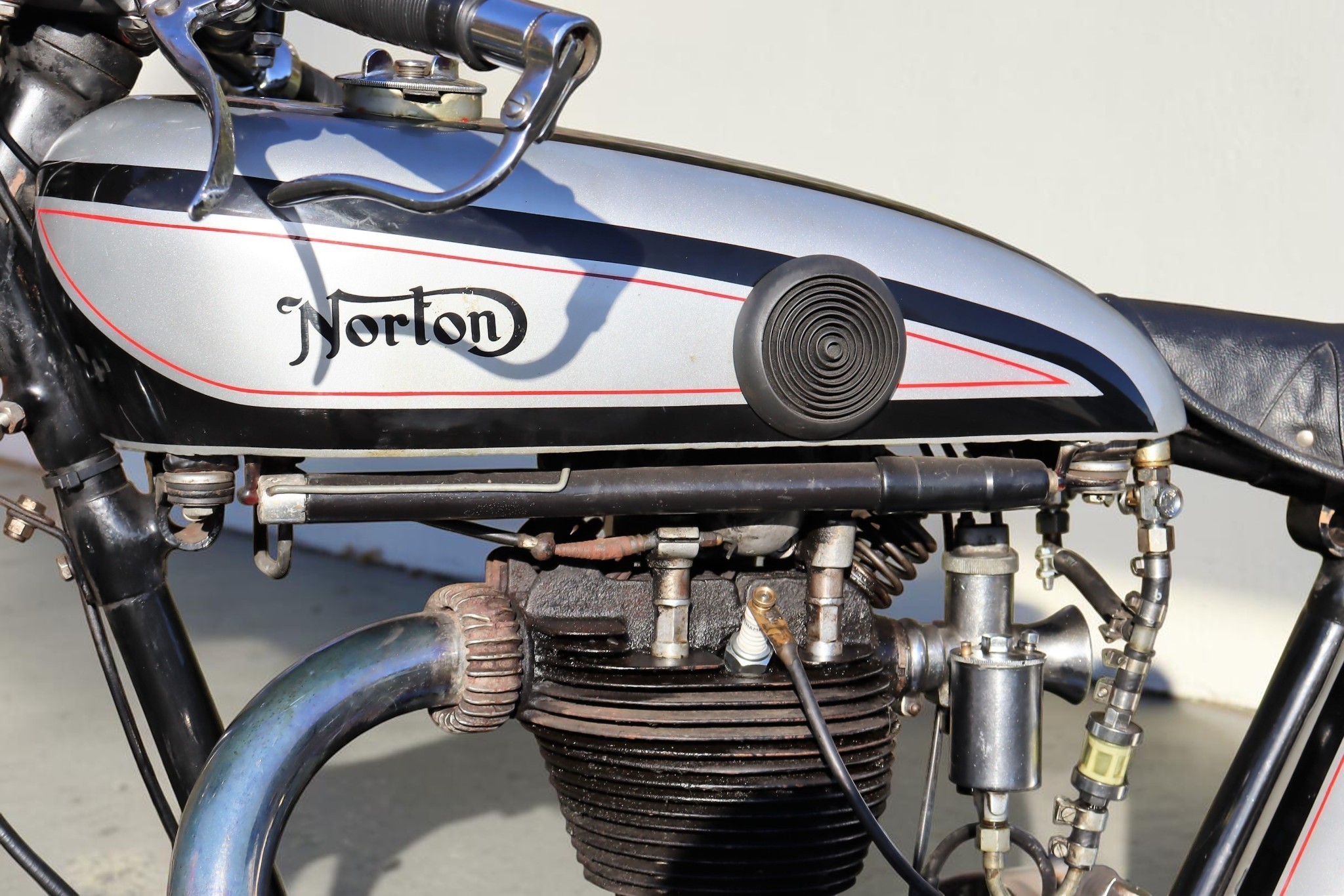

The large single-cylinder engine dominates the center of the frame, while the relatively narrow fuel tank, wire wheels, exposed mechanical components, and sporting riding position create a purposeful appearance.
The overhead-camshaft drive is one of the motorcycle's most distinctive mechanical features, with the bevel-drive shaft running vertically alongside the cylinder.
The CS1's design was considerably more performance-oriented than Norton's basic utility motorcycles, yet it retained the practical road equipment necessary for everyday use.

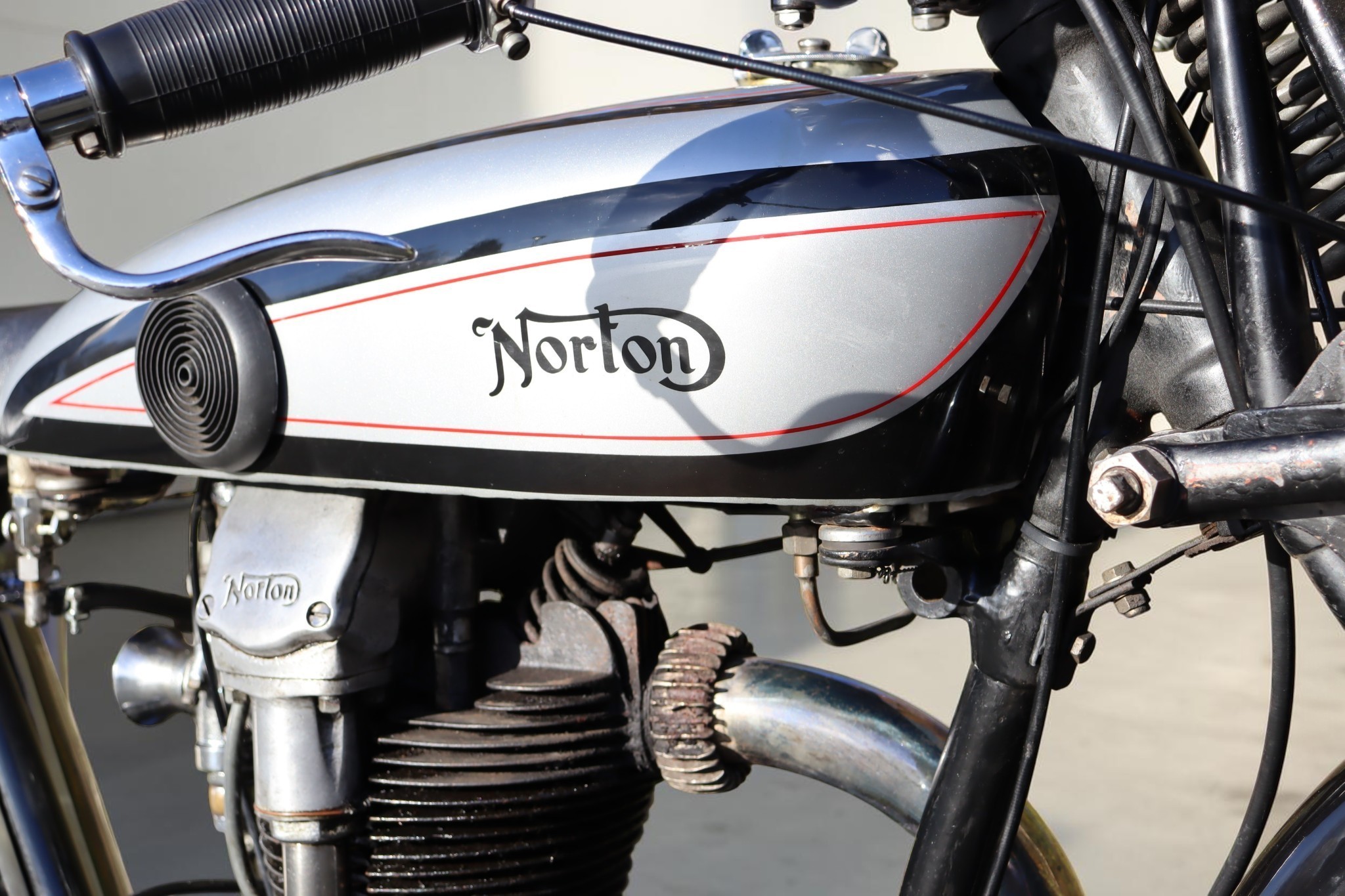

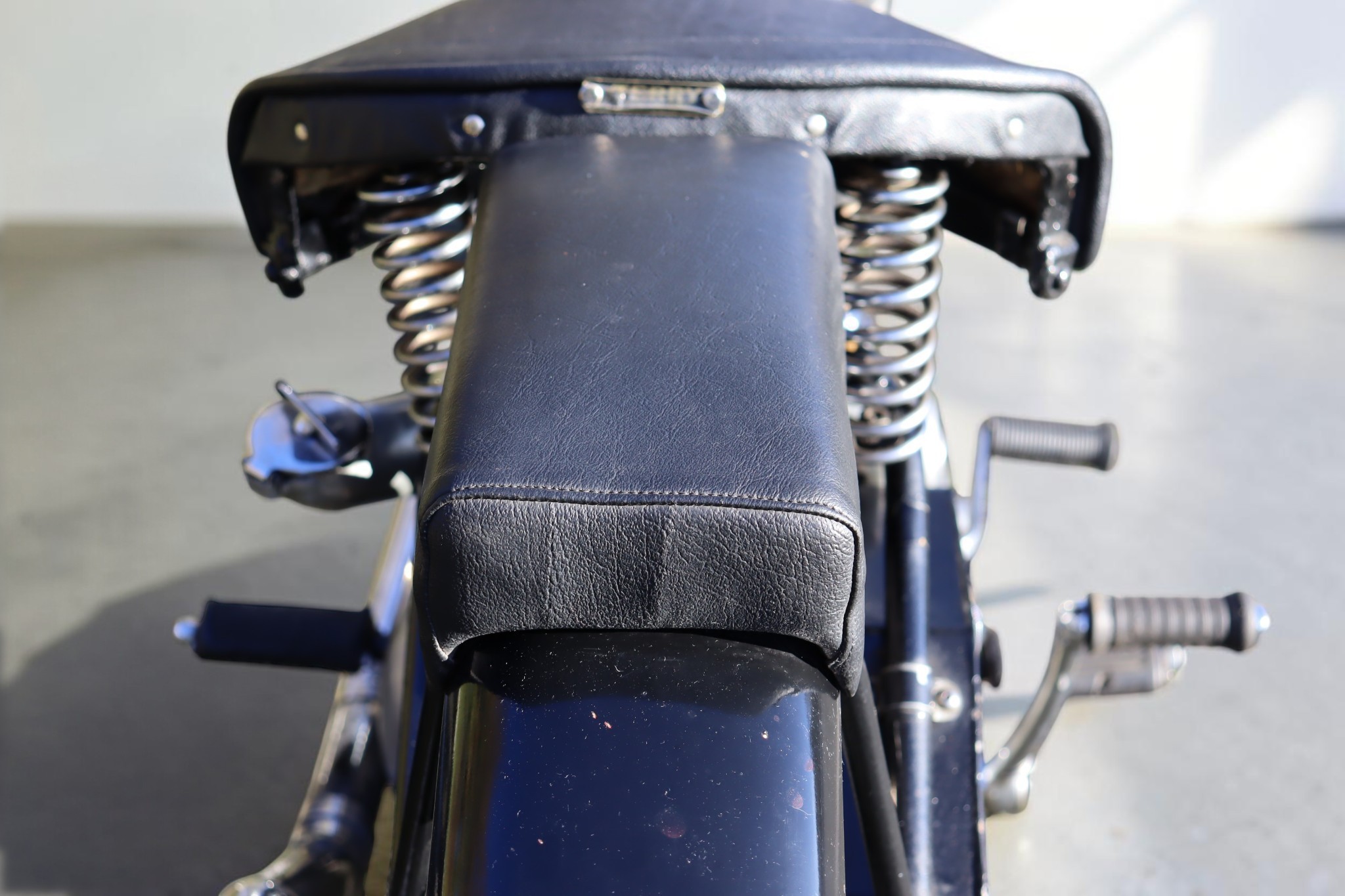

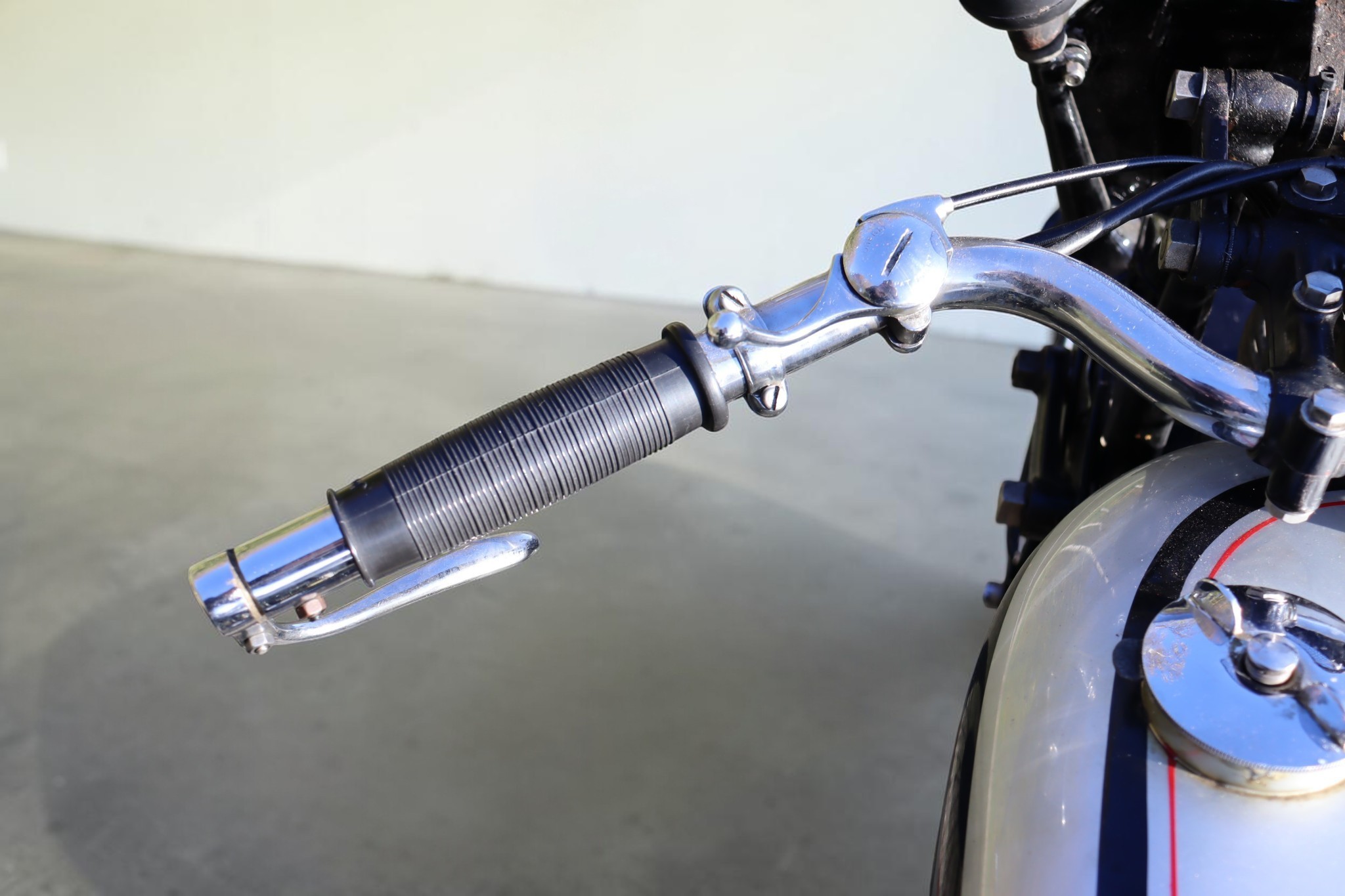

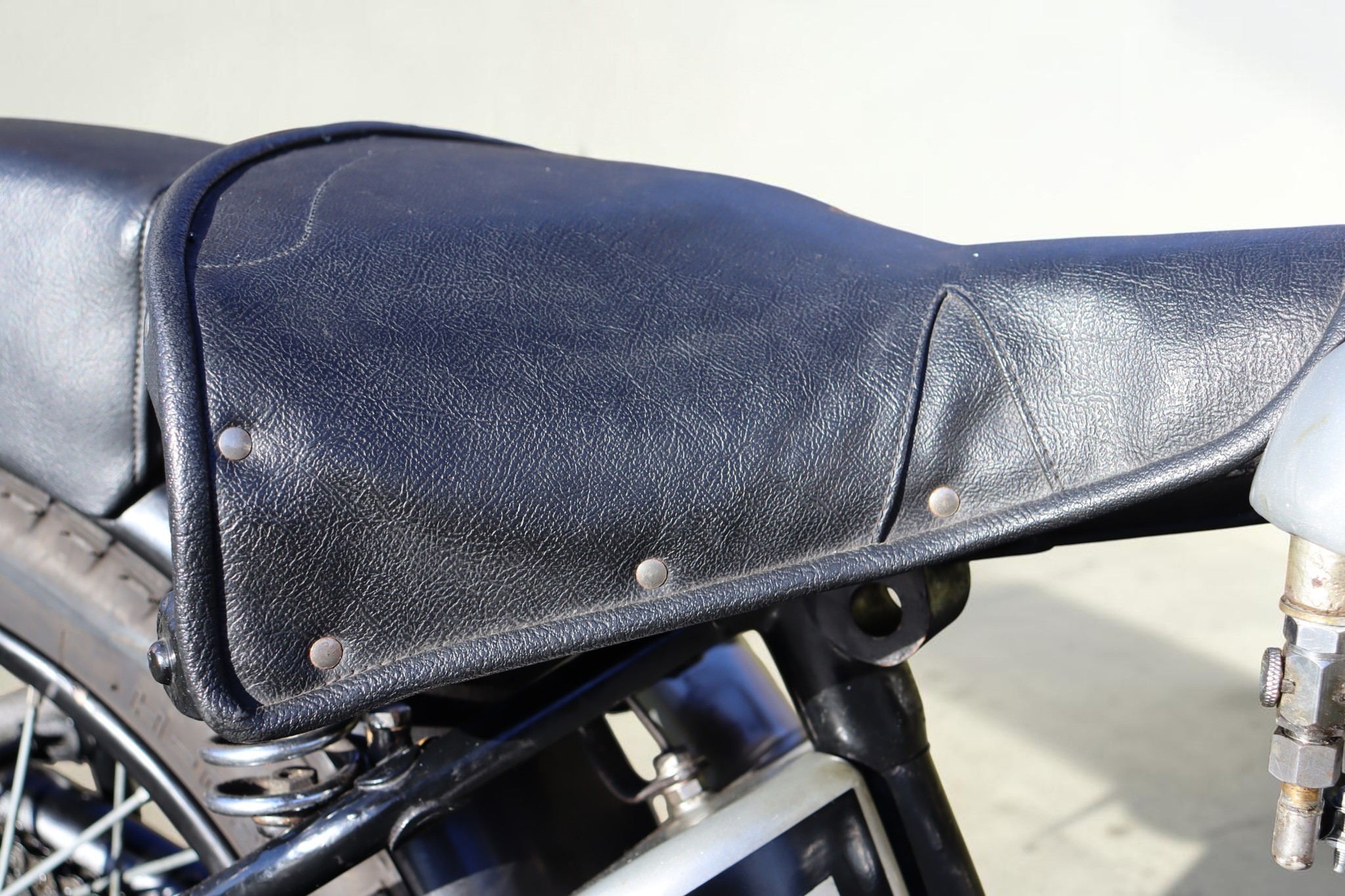

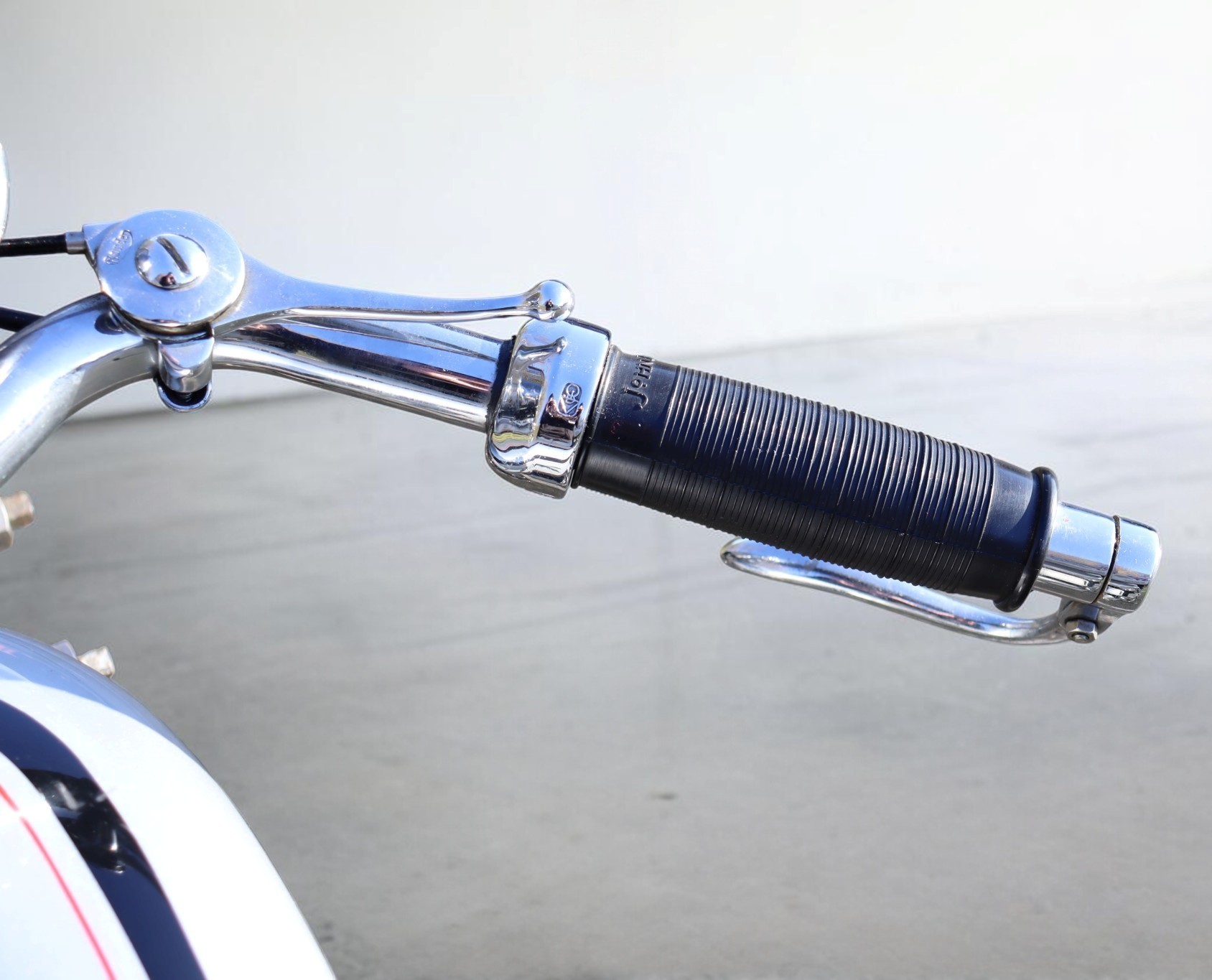

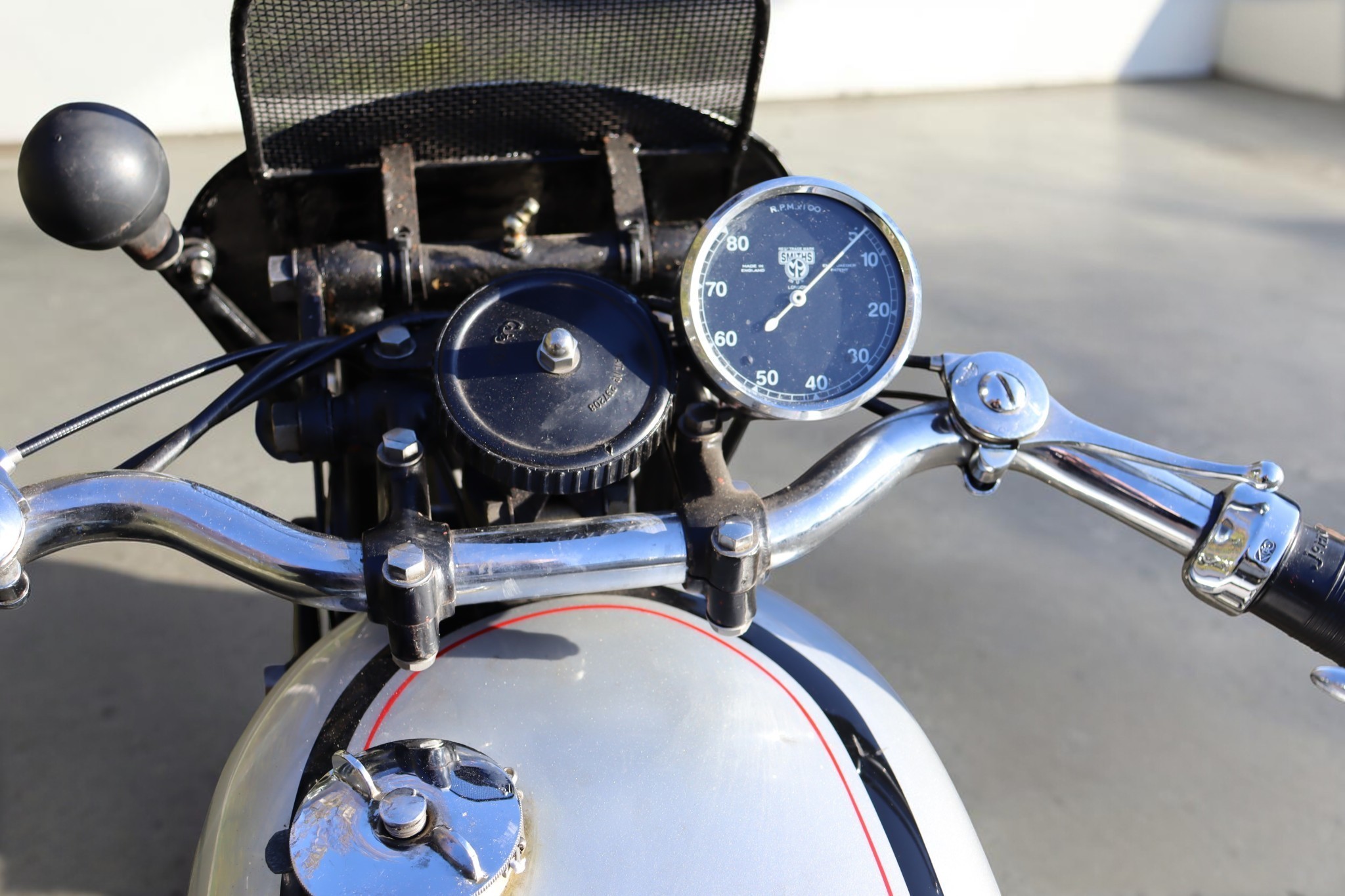

Period finishes, polished engine components, correct tank details, Norton controls, leather saddle, and original-style hardware all contribute to the visual authenticity of a restored example.
The 1930 Norton CS1 occupies a particularly important position in the development of Norton's overhead-camshaft motorcycles.
It was the year in which Walter Moore left Norton and Arthur Carroll began the redesign that would eventually transform Norton's OHC engine into one of the dominant racing powerplants of the 1930s.
The original CS1 architecture had already demonstrated its ability to compete successfully at the Isle of Man TT, but Norton needed a new engine design to address the shortcomings of the earlier unit.
The Carroll redesign retained the basic overhead-camshaft concept while introducing extensive changes to the engine.
The 1930 model therefore represents an important bridge between Norton's first OHC motorcycles and the later International and Manx lineage.
The Norton CS1 has the characteristic feel of a sporting British single-cylinder motorcycle.
The overhead-camshaft engine is more performance-oriented than Norton's conventional side-valve and pushrod singles and is capable of operating at higher engine speeds.
The relatively light chassis and sporting gearing give the CS1 a responsive character compared with larger touring motorcycles of the same period.
The long-stroke 490 cc single-cylinder engine nevertheless retains the strong torque and distinctive exhaust note associated with classic British singles.
A surviving 1930 CS1 should be operated with particular care because early overhead-camshaft components can be expensive and difficult to replace.
Before regular use, the engine, camshaft drive, bevel gears, lubrication system, magneto, carburetor, clutch, gearbox, steering, suspension, wheels, tires, and brakes should be thoroughly inspected.
The Norton CS1 is historically important because it introduced Norton customers to the company's overhead-camshaft technology and established the engineering foundation for a generation of successful racing motorcycles.
The first OHC Norton won the 1927 Senior TT, immediately demonstrating the competitiveness of the new engine design.
The subsequent development of the CS1 contributed directly to Norton's dominance of international motorcycle racing during the 1930s.
The 1930 redesign by Arthur Carroll was particularly significant. The Carroll engine eventually became the basis for the International and later Manx engines, making the CS1 one of the most important ancestors of Norton's legendary racing motorcycles.
The 1930 model therefore represents a pivotal moment in the evolution of Norton engineering.
The 1930 Norton CS1 is highly desirable among collectors of early Norton motorcycles and historically important British racing-derived machines.
Its early overhead-camshaft engine, connection with the Isle of Man TT, transitional 1930 specification, and relationship to the later International and Manx motorcycles make it particularly significant.
Collectors should pay close attention to the engine, camshaft drive, bevel gears, crankcases, cylinder, frame, fuel tank, gearbox, fork, wheels, brakes, carburetor, magneto, exhaust, controls, and electrical equipment.
The engine and frame numbers are particularly important because early CS1 motorcycles are often composed of parts from several different production periods.
Original overhead-camshaft components, correct frame construction, period engine castings, original hardware, factory finishes, and documented provenance can significantly increase historical interest.
A CS1 retaining its correct early engine and frame is especially desirable because many examples were later upgraded, raced, or converted using newer Norton components.
Authenticating a 1930 Norton CS1 requires careful examination of both the engine and chassis.
The engine should be identified through its crankcase construction, cylinder, overhead-camshaft drive, bevel gear arrangement, timing components, valve gear, and period casting details.
The distinction between the original Walter Moore design and the later Arthur Carroll redesign is particularly important when assessing an early 1930 machine.
The frame should be checked for the appropriate full-cradle construction and three-stay arrangement, together with correct engine mounting points, steering-head details, and frame numbers.
The fuel tank, gearbox, fork, wheels, brakes, exhaust, controls, carburetor, magneto, and electrical equipment should also be compared with period Norton specifications.
Engine and frame numbers should be documented and checked against reliable Norton factory records whenever possible.
Period registration documents, factory literature, photographs, ownership records, competition history, restoration invoices, and historical photographs can provide valuable evidence of provenance.
The 1930 Norton CS1 matters because it represents a critical stage in the development of one of Britain's most successful racing-engine families.
The original CS1 had already established Norton's overhead-camshaft technology as a serious competitive advantage, while the 1930 Carroll redesign laid the groundwork for the engines that would dominate the Senior TT during much of the following decade.
The motorcycle therefore connects Norton's early OHC experiments directly with the later International and Manx racing machines.
For collectors, the 1930 CS1 is especially valuable as a transitional model that captures the moment when Norton was moving from Walter Moore's original design toward Arthur Carroll's new generation of overhead-camshaft engines.
A well-preserved or accurately restored 1930 Norton CS1 with its correct engine, frame, period equipment, and documented provenance represents a significant piece of British motorcycle racing and engineering history.
This 1930 Norton CS1 represents a pivotal period in the development of Norton's legendary overhead-camshaft motorcycles.
Its approximately 490 cc single-cylinder OHC engine, bevel-driven camshaft, sporting chassis, and direct connection to Norton's successful TT racing program make the CS1 one of the most historically significant British motorcycles of the inter-war period.
The 1930 model is especially important because it belongs to the transition from Walter Moore's original OHC design to the extensively redesigned Arthur Carroll engine that became the foundation of Norton's later International and Manx racing engines.
For collectors, the correct engine and frame, original camshaft and bevel-drive components, period gearbox, fork, wheels, controls, electrical equipment, and documented provenance are particularly important when establishing authenticity.
A well-preserved or accurately restored 1930 Norton CS1 with correct period components and strong historical documentation represents a significant example of British motorcycle engineering and racing history.
